9.2 Electric Potential
IntermediateMCQGraphicalProportional AnalysisConceptual17.3k
Electric potential V as a function of distance r.
Electric potential V as a function of distance r.

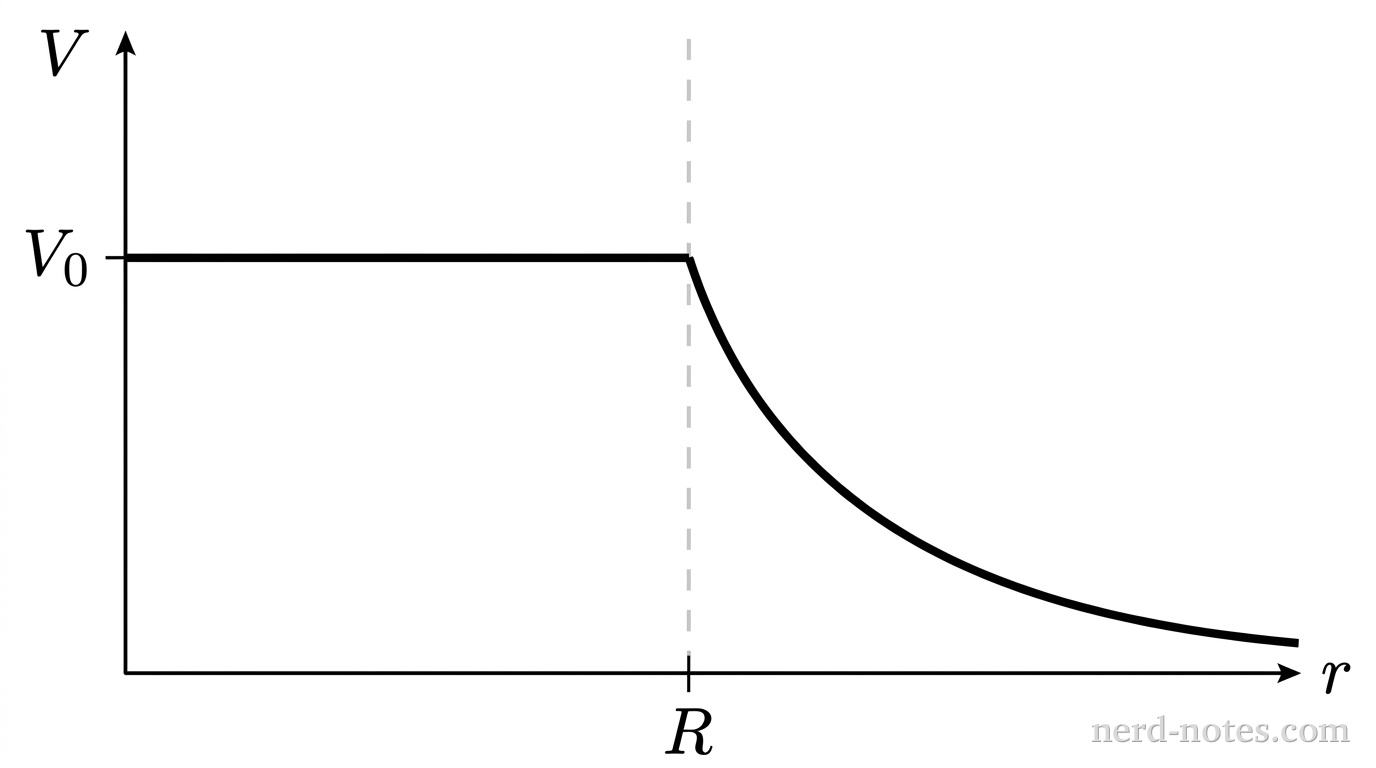

The electric potential \(V(r)\) as a function of distance \(r\) from the center of an isolated, charged solid conducting sphere of radius \(R\) is shown in the graph. Which of the following graphs best represents the electric field magnitude \(E(r)\) as a function of \(r\) for this sphere?
