10.1 Electrostatics with Conductors
IntermediateMCQGraphicalConceptual16.1k

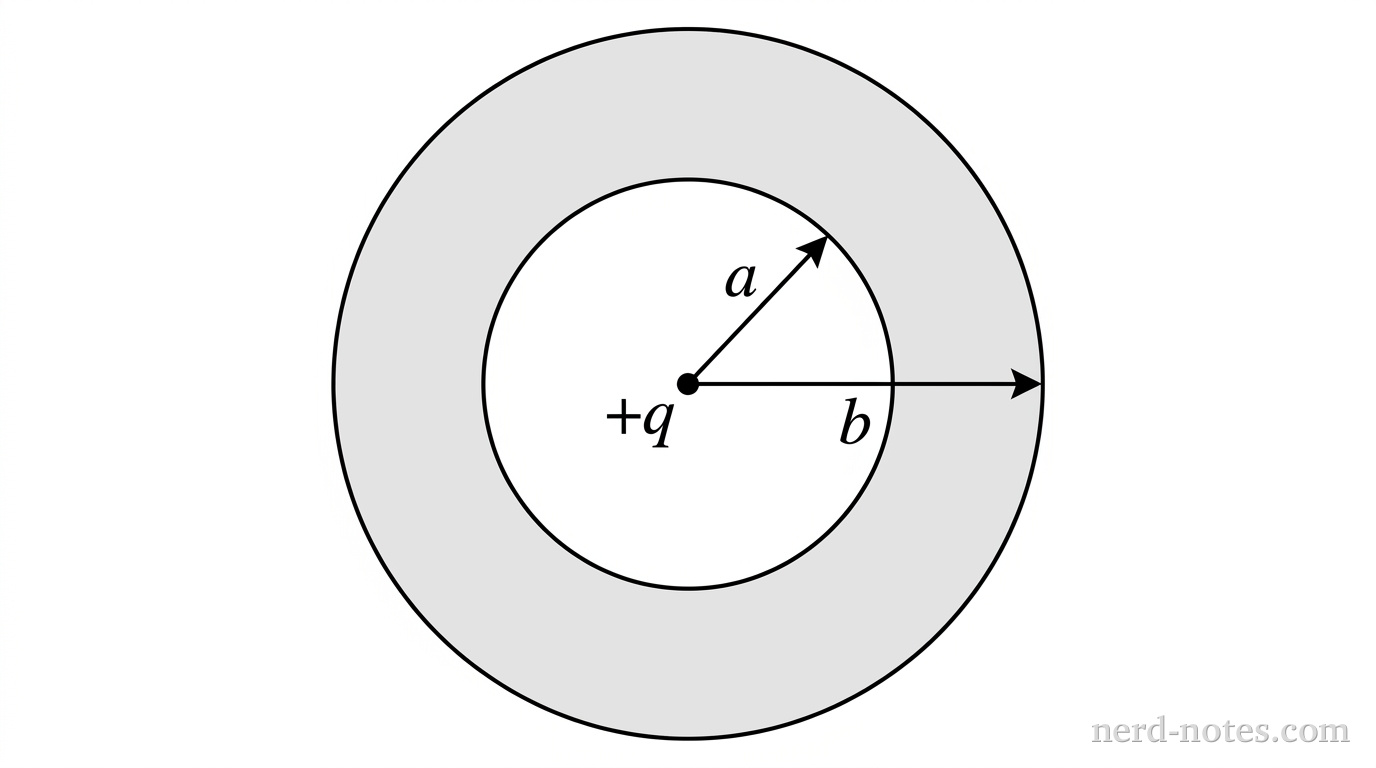

Cross section of point charge +q and the conducting shell.
Cross section of point charge +q and the conducting shell.
A point charge \(+q\) is fixed at the center of an uncharged, thick conducting spherical shell with inner radius \(a\) and outer radius \(b\). Which of the following graphs best represents the electric field magnitude \(E\) as a function of radial distance \(r\) from the central point charge?
