10.1 Electrostatics with Conductors
IntermediateMCQGraphicalConceptual21.7k

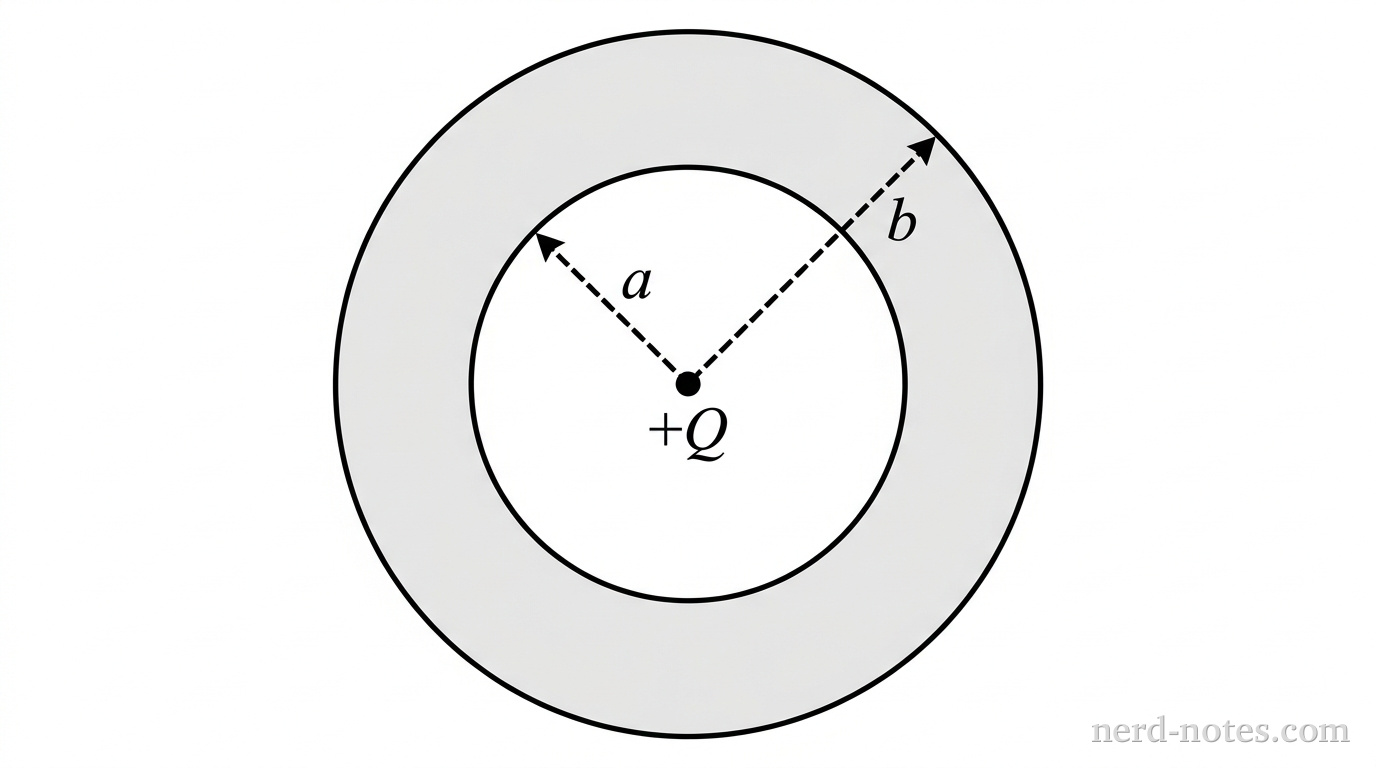

Cross section of the point charge and conducting shell.
Cross section of the point charge and conducting shell.
A positive point charge \(+Q\) is fixed at the center of an isolated, uncharged conducting spherical shell with inner radius \(a\) and outer radius \(b\). The electric potential is defined to be zero at infinity (\(V(\infty) = 0\)). Which of the following graphs best represents the electric potential \(V\) as a function of radial distance \(r\) from the center?
