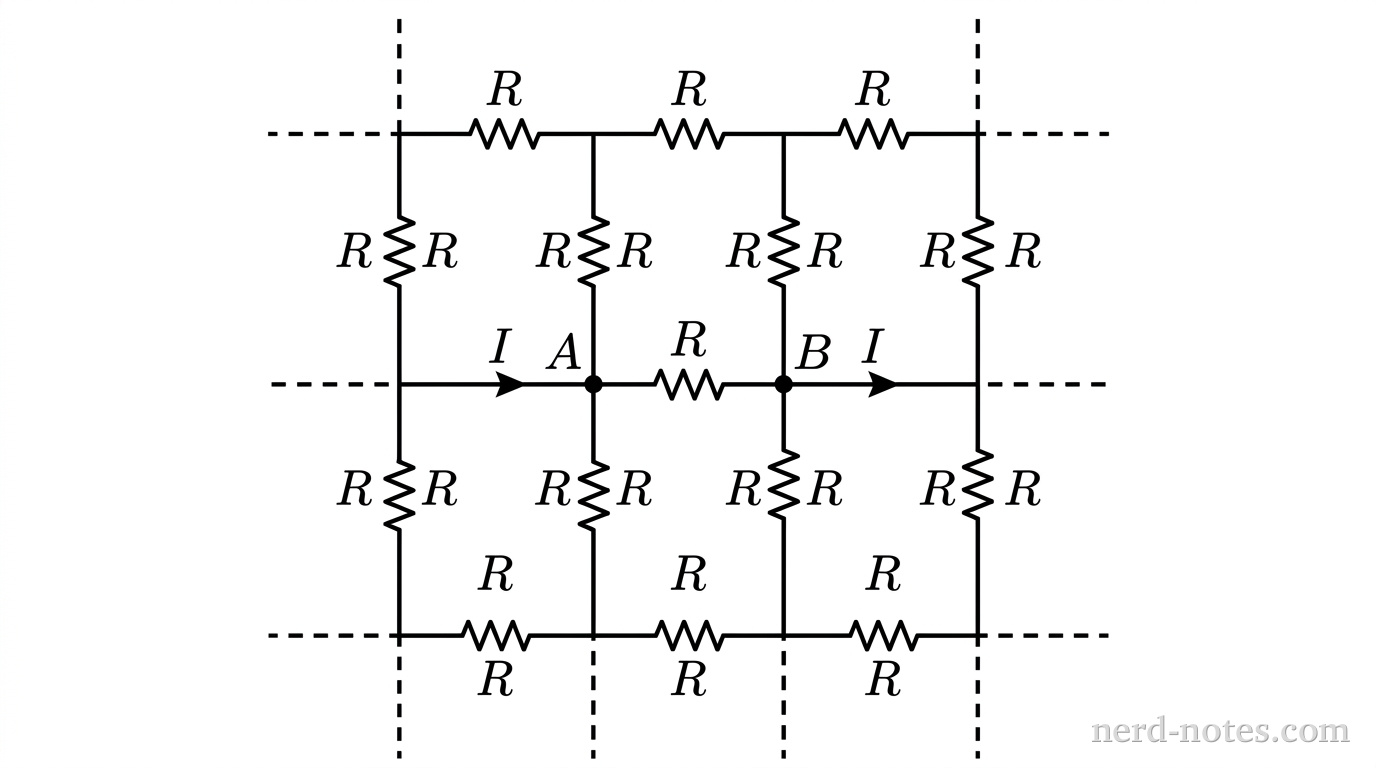

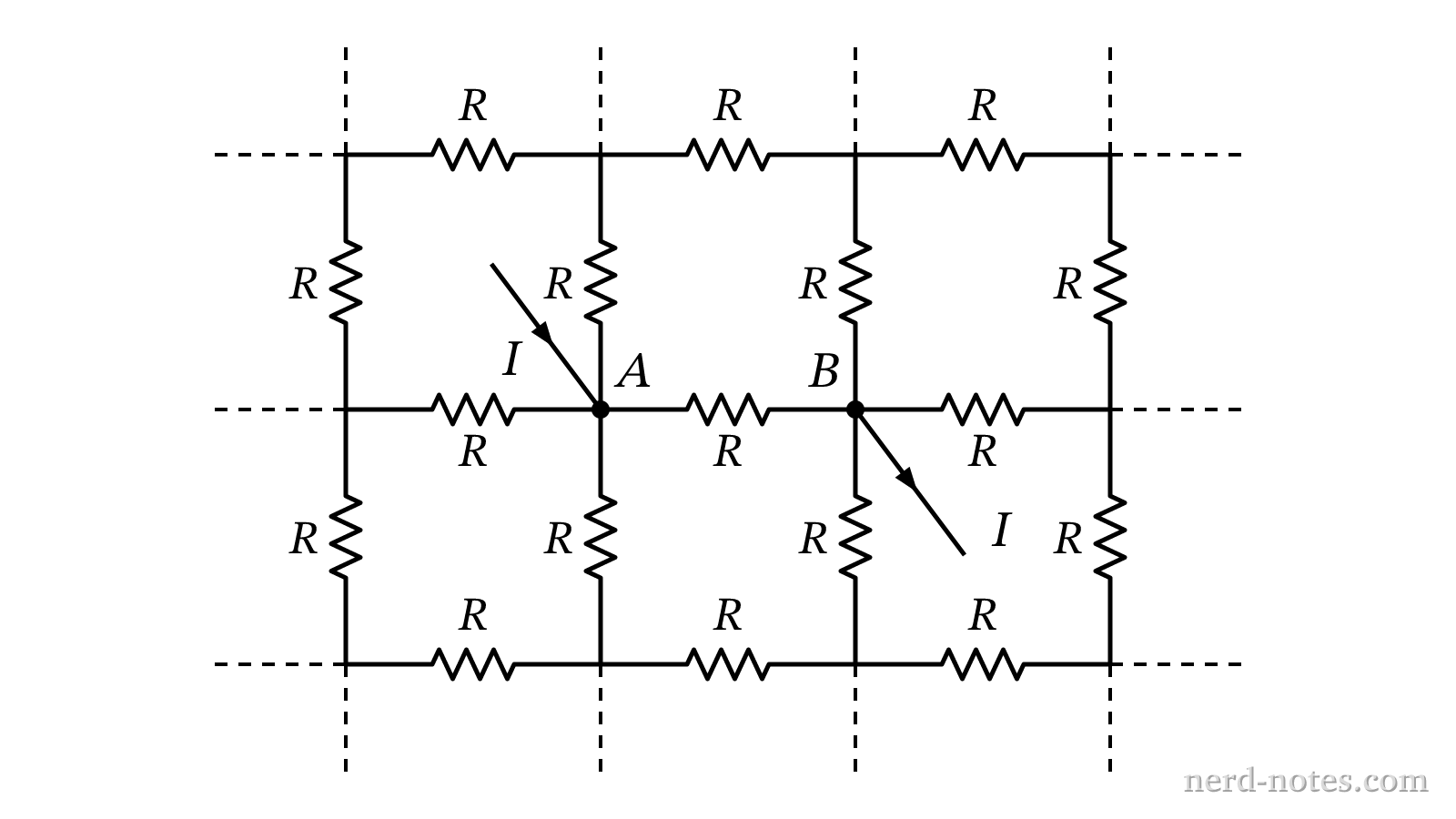

An infinite two-dimensional square grid is constructed with identical resistors, each of resistance $R$, connected at every junction node. A battery supplies a net current $I$ that enters the grid at node $A$ and exits at an adjacent node $B$. Which of the following claims correctly gives the equivalent resistance $R_{eq}$ between nodes $A$ and $B$, along with the correct physical justification?(a) $R_{eq} = \dfrac{R}{2}$, because injecting current $I$ into node $A$ sends $\dfrac{I}{4}$ through the resistor between $A$ and $B$, and extracting current $I$ from node $B$ draws $\dfrac{I}{4}$ through the same resistor, giving a net current of $\dfrac{I}{2}$ through that resistor. , (b) $R_{eq} = \dfrac{R}{4}$, because four identical paths branch symmetrically from node $A$, so the total current $I$ splits equally into four parallel paths, each having an equivalent resistance of $R$. , (c) $R_{eq} = \dfrac{R}{2}$, because the infinite network surrounding the edge between $A$ and $B$ acts as a single equivalent resistor of resistance $R$ connected in parallel with the resistor directly between $A$ and $B$. , (d) $R_{eq} = R$, because the current takes the path of least resistance through the single resistor connecting nodes $A$ and $B$, while all surrounding indirect paths through the infinite grid present infinite total resistance. :

An infinite two-dimensional square grid is constructed with identical resistors, each of resistance $R$, connected at every junction node. A battery supplies a net current $I$ that enters the grid at node $A$ and exits at an adjacent node $B$. Which of the following claims correctly gives the equivalent resistance $R_{eq}$ between nodes $A$ and $B$, along with the correct physical justification? • Nerd Notes

AP Physics

Unit 1 - Vectors and Kinematics

MCQ

Mathematical

Advanced

Step	Reasoning
Identify the target quantity and select the superposition method.	The equivalent resistance is defined by $R_{eq} = \dfrac{V_{AB}}{I}$. Because direct series-parallel reduction is impossible for an infinite grid, we decompose the total current flow into two independent, symmetric states using superposition.
Analyze state 1: inject current $I$ into node $A$ and let it flow out to infinity. \[ I_1 = \dfrac{I}{4} \]	By the four-fold rotational symmetry of the square grid, the current entering node $A$ must divide equally among the four resistors attached to node $A$.
Analyze state 2: extract current $I$ from node $B$ drawn from infinity. \[ I_2 = \dfrac{I}{4} \]	By the same four-fold rotational symmetry, the current pulled out of node $B$ draws equal current through each of the four resistors attached to node $B$.
Superimpose state 1 and state 2 to find the total current through resistor $AB$. \[ I_{AB} = I_1 + I_2 = \dfrac{I}{4} + \dfrac{I}{4} = \dfrac{I}{2} \]	Superimposing both flows gives a net current $I$ entering node $A$ and exiting node $B$. In both sub-problems, the current flows in the same direction along the direct segment from $A$ to $B$.
Apply Ohm’s law across the resistor between $A$ and $B$ to solve for $R_{eq}$. \[ V_{AB} = I_{AB} R = \left(\dfrac{I}{2}\right) R \implies R_{eq} = \dfrac{V_{AB}}{I} = \dfrac{R}{2} \]	The potential difference $V_{AB}$ across the direct resistor of resistance $R$ depends only on the net current $I_{AB}$ passing through it.

Why each choice is correct or incorrect:

(A) This is the correct answer.

(B) Incorrectly assumes the four branches meeting at node A act as simple parallel branches each with equivalent resistance R, yielding $R_{eq} = R/4$.

(C) Reaches the correct numerical value $R/2$ through unsound reasoning, asserting without justification that the remaining infinite network simplifies to a single resistor of value R.

(D) Falsely assumes that adding parallel paths increases total resistance to infinity, incorrectly ignoring current flow through the rest of the grid.
