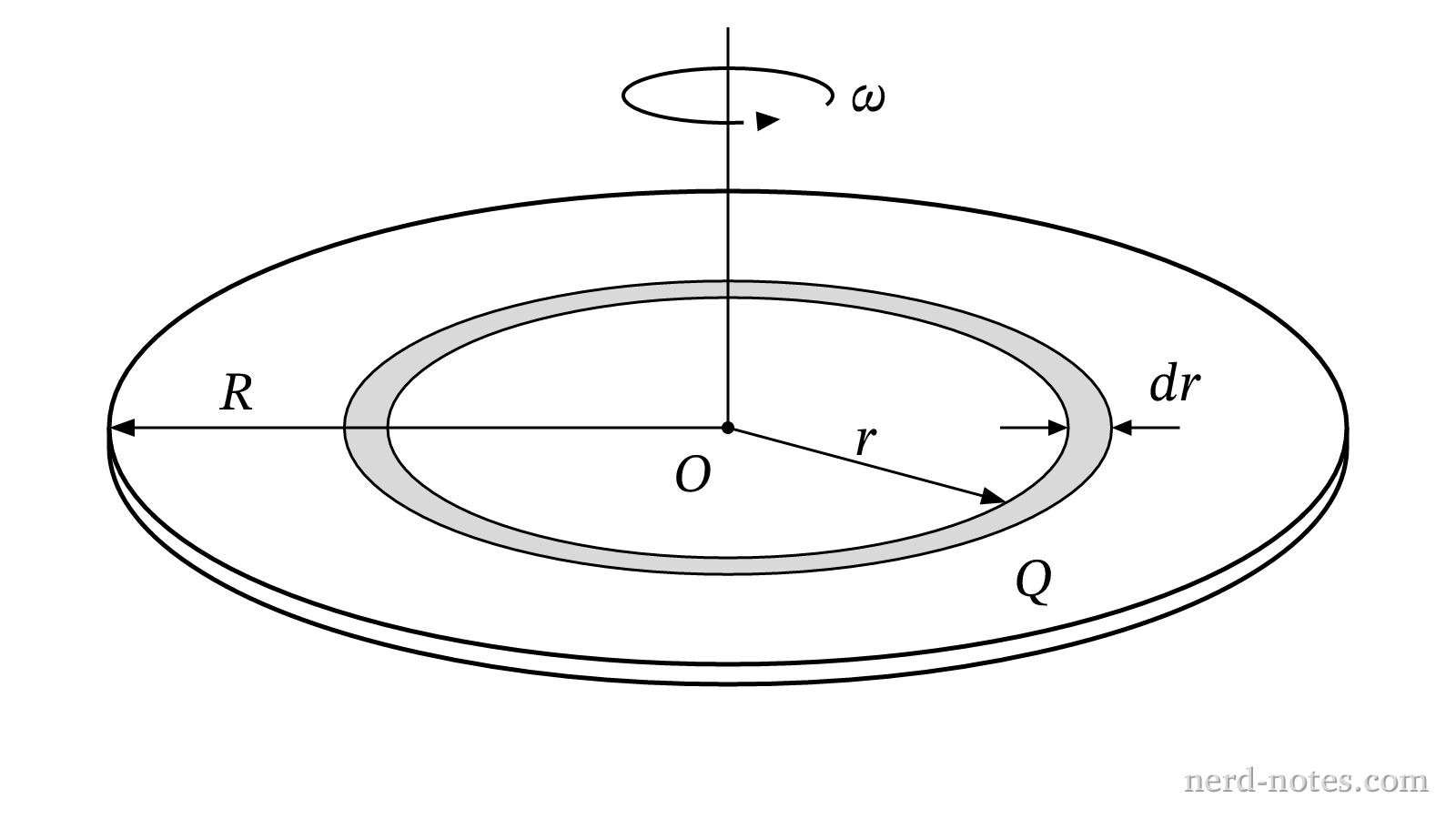

A flat nonconducting disk of radius $R$ carries a total electric charge $Q$ distributed uniformly over its surface. The disk rotates about its central symmetry axis perpendicular to its plane at a constant angular frequency $\omega$. Which of the following expressions represents the magnitude of the magnetic field at the center of the disk? • Nerd Notes

AP Physics

Unit 1 - Vectors and Kinematics

MCQ

Mathematical

Advanced

Step	Reasoning
Identify the target quantity and strategy	The question asks for the magnetic field at the center of a rotating charged disk, which can be modeled as a continuous series of concentric thin ring current loops.
Express the charge of a differential ring element of radius $r$ and width $dr$ \[ \sigma = \dfrac{Q}{\pi R^2} \implies dq = \sigma (2\pi r \, dr) = \dfrac{2Q r \, dr}{R^2} \]	To find the effective current of a differential element, we first need the charge $dq$ contained within that element.
Relate the charge element and rotation rate to current \[ dI = \dfrac{dq}{T} = \dfrac{dq \, \omega}{2\pi} = \left(\dfrac{2Q r \, dr}{R^2}\right) \left(\dfrac{\omega}{2\pi}\right) = \dfrac{Q \omega r \, dr}{\pi R^2} \]	As the disk rotates with period $T = 2\pi / \omega$, the charge $dq$ passes a given point once per period, creating an effective ring current $dI$.
Formulate the magnetic field contribution $dB$ at the center \[ dB = \dfrac{\mu_0 dI}{2r} = \dfrac{\mu_0}{2r} \left(\dfrac{Q \omega r \, dr}{\pi R^2}\right) = \dfrac{\mu_0 Q \omega}{2\pi R^2} dr \]	A circular current loop of radius $r$ carrying current $dI$ produces a magnetic field at its center given by $dB = \dfrac{\mu_0 dI}{2r}$.
Integrate $dB$ across the radius of the disk \[ B = \int_0^R \dfrac{\mu_0 Q \omega}{2\pi R^2} dr = \dfrac{\mu_0 Q \omega}{2\pi R^2} \int_0^R dr = \dfrac{\mu_0 Q \omega}{2\pi R} \]	Summing the contributions from all concentric rings from $r = 0$ to $r = R$ yields the total magnetic field.

Why each choice is correct or incorrect:

(A) This is the correct answer.

(B) Treats the disk as a single narrow ring of radius $R$ carrying total current $I = Q\omega / 2\pi$, yielding $B = \mu_0 I / (2R) = \mu_0 Q \omega / (4\pi R)$.

(C) Uses $dB = \mu_0 dI / r$ instead of the correct loop formula $dB = \mu_0 dI / (2r)$, forgetting the factor of $1/2$.

(D) Mistakenly calculates the area of the differential ring as $\pi r dr$ instead of $2\pi r dr$, dropping a factor of 2 in $dq$.
