| Step | Reasoning |
|---|---|

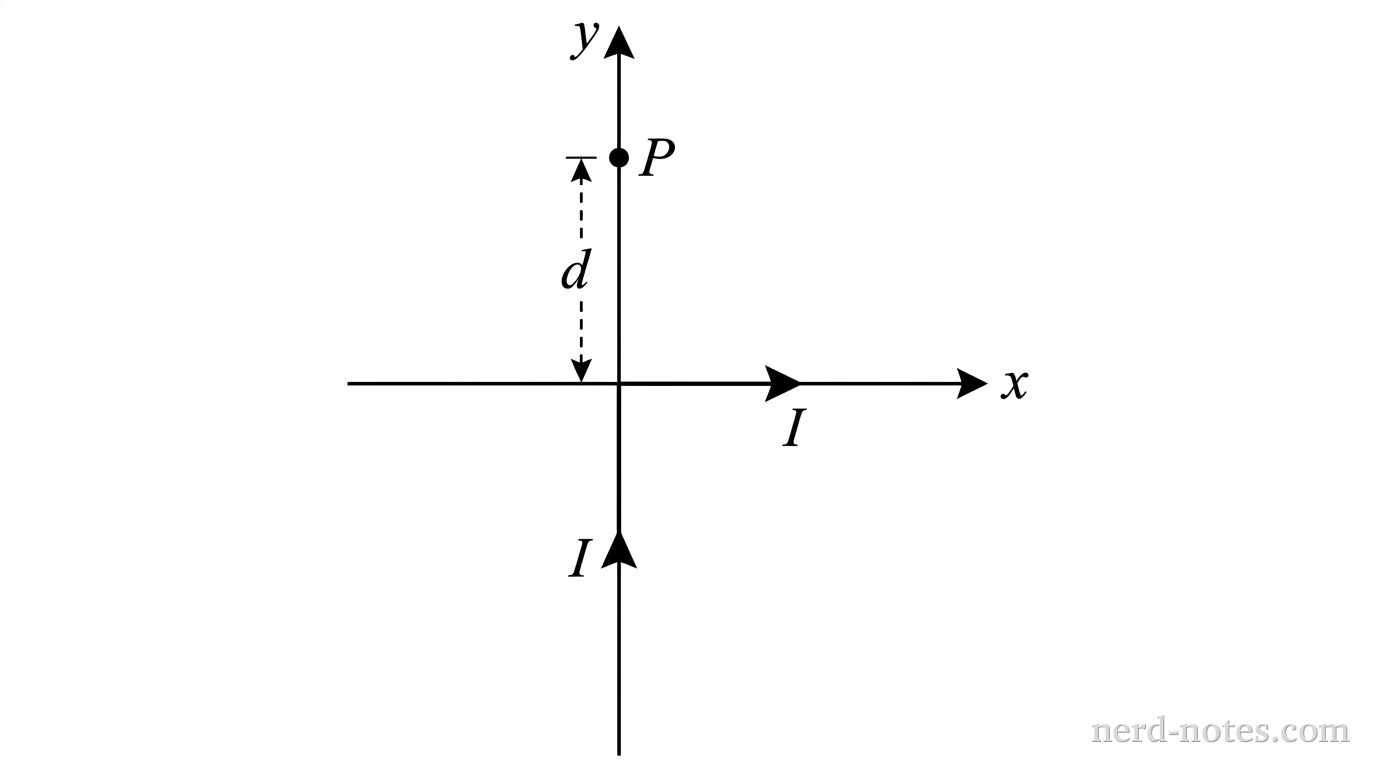

| Identify the ask and express the net magnetic field at point \(P\) as the superposition of the fields from the two semi-infinite wire segments. \[ \vec{B}_{\text{net}} = \vec{B}_y + \vec{B}_x = \dfrac{\mu_0 I}{4\pi} \int_{\text{y-axis}} \dfrac{d\vec{\ell} \times \hat{r}}{r^2} + \dfrac{\mu_0 I}{4\pi} \int_{\text{x-axis}} \dfrac{d\vec{\ell} \times \hat{r}}{r^2} \] |
The net magnetic field is the vector sum of the field \(\vec{B}_y\) produced by the segment on the negative y-axis and the field \(\vec{B}_x\) produced by the segment on the positive x-axis. |
| Evaluate the magnetic field contribution \(\vec{B}_y\) from the segment extending along the negative y-axis. \[ d\vec{\ell} = dy\,\hat{j}, \quad \vec{r} = (d – y)\,\hat{j} \implies d\vec{\ell} \times \vec{r} = 0 \implies \vec{B}_y = 0 \] |
Point \(P(0, d)\) lies along the line collinear with this segment, making the current elements parallel to the position vector. |
| Apply the Biot–Savart law to integrate the contribution \(B_x\) from the segment along the positive x-axis. \[ d\vec{\ell} \times \vec{r} = (dx\,\hat{i}) \times (-x\,\hat{i} + d\,\hat{j}) = d\,dx\,\hat{k} \] \[ B_x = \dfrac{\mu_0 I d}{4\pi} \int_0^\infty \dfrac{dx}{(x^2 + d^2)^{3/2}} = \dfrac{\mu_0 I d}{4\pi} \left[ \dfrac{x}{d^2 \sqrt{x^2 + d^2}} \right]_0^\infty = \dfrac{\mu_0 I}{4\pi d} \] |
Current elements at \((x, 0)\) have distance \(r = \sqrt{x^2 + d^2}\) from point \(P(0, d)\). |
| Sum the contributions to find the total magnitude of the magnetic field. \[ B_{\text{net}} = 0 + \dfrac{\mu_0 I}{4\pi d} = \dfrac{\mu_0 I}{4\pi d} \] |
Combining \(B_y = 0\) and \(B_x = \dfrac{\mu_0 I}{4\pi d}\) gives the net magnitude. |
Why each choice is correct or incorrect:
(A) This is the correct answer, derived by showing that the segment along the y-axis contributes zero field at point P and integrating the Biot–Savart law for the semi-infinite segment along the x-axis.
(B) Incorrectly treats the wire as an infinitely long straight wire, which gives \(\dfrac{\mu_0 I}{2\pi d}\), or incorrectly assumes the segment on the y-axis also contributes \(\dfrac{\mu_0 I}{4\pi d}\).
(C) Incorrectly assumes both segments contribute non-zero fields of magnitude \(\dfrac{\mu_0 I}{4\pi d}\) in perpendicular directions and takes their vector sum \(\sqrt{B_x^2 + B_y^2}\).
(D) Result of evaluating the Biot–Savart integral but accidentally leaving out the factor of \(\pi\) from the denominator.
