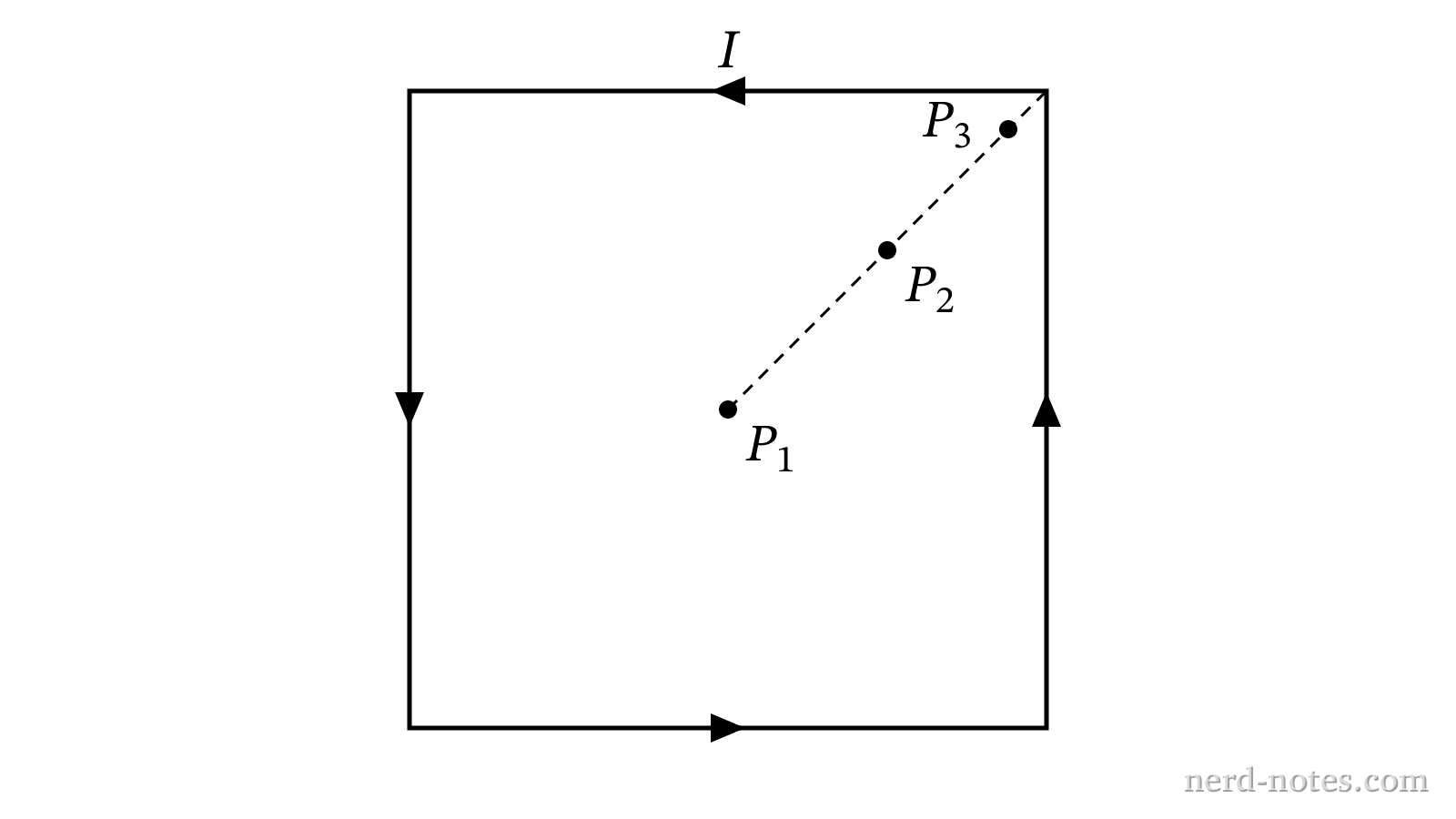

A thin, rigid square loop of wire with side length $L$ lies in the $xy$-plane and carries a steady counterclockwise current $I$. Points $P_1$, $P_2$, and $P_3$ lie along the diagonal line connecting the center of the loop to its upper-right corner, where $P_1$ is at the center, $P_2$ is halfway along the diagonal to the corner, and $P_3$ is very close to the corner. Which of the following correctly pairs the ranking of the magnetic field magnitudes $B_1$, $B_2$, and $B_3$ at these points with the magnitude of the magnetic field $B_1$ at the center of the loop? • Nerd Notes

AP Physics

Unit 1 - Vectors and Kinematics

MCQ

Mathematical

Advanced

Step	Reasoning
Determine the magnetic field magnitude $B_1$ at the center $P_1$ of the square loop. \[ d\vec{B} = \dfrac{\mu_0 I}{4\pi} \dfrac{d\vec{\ell} \times \hat{r}}{r^2} \]	The question requires calculating the exact field magnitude at the center by summing the vector contributions from all four straight segments of length $L$.
Integrate the Biot-Savart law along one side of length $L$ located at perpendicular distance $d = L/2$ from the center. \[ B_{\text{1 side}} = \dfrac{\mu_0 I}{4\pi (L/2)} \int_{-\pi/4}^{\pi/4} \cos\theta\,d\theta = \dfrac{\mu_0 I}{2\pi L} \left[\sin\left(\dfrac{\pi}{4}\right) – \sin\left(-\dfrac{\pi}{4}\right)\right] = \dfrac{\sqrt{2}\mu_0 I}{2\pi L} \]	To find the field from one finite straight segment subtending angles from $\theta_1 = -45^\circ$ to $\theta_2 = +45^\circ$ relative to the normal from the segment to the center.
Sum the contributions from all four sides. \[ B_1 = 4 B_{\text{1 side}} = 4 \left(\dfrac{\sqrt{2}\mu_0 I}{2\pi L}\right) = \dfrac{2\sqrt{2}\mu_0 I}{\pi L} \]	By symmetry and the right-hand rule, all four sides produce magnetic field vectors pointing out of the page at the center.
Compare the perpendicular distances from points $P_1$, $P_2$, and $P_3$ to the nearest wire segments.	The field magnitude from each wire segment scales inversely with perpendicular distance ($B \propto 1/d$). As a point moves along the diagonal from the center toward a corner, its distance to the two adjacent wire segments forming that corner decreases toward zero.
Establish the magnitude ranking $B_3 > B_2 > B_1$.	At $P_1$, all sides are at distance $L/2$. At $P_2$, two sides are at distance $L/4$, increasing their field contribution. At $P_3$, the distance to the two corner wires approaches zero, causing the field magnitude to diverge to infinity. Thus $B_3 > B_2 > B_1$.

Why each choice is correct or incorrect:

(A) This is the correct answer.

(B) Incorrectly assumes the magnetic field is largest at the center where all four sides contribute symmetrically, ignoring that approaching a wire segment increases the local field magnitude as $1/d$.

(C) Correctly ranks the magnetic field magnitudes but fails to multiply by 4 when summing the contributions of all four sides of the square loop.

(D) Incorrectly assumes the field inside a closed current loop is uniform and uses the infinite wire expression ($\sin\theta = 1$) rather than integrating over finite wire segments.
