12.3 Magnetic Fields of Current-Carrying Wires and the Biot-Savart Law
AdvancedMCQMathematical15.8k

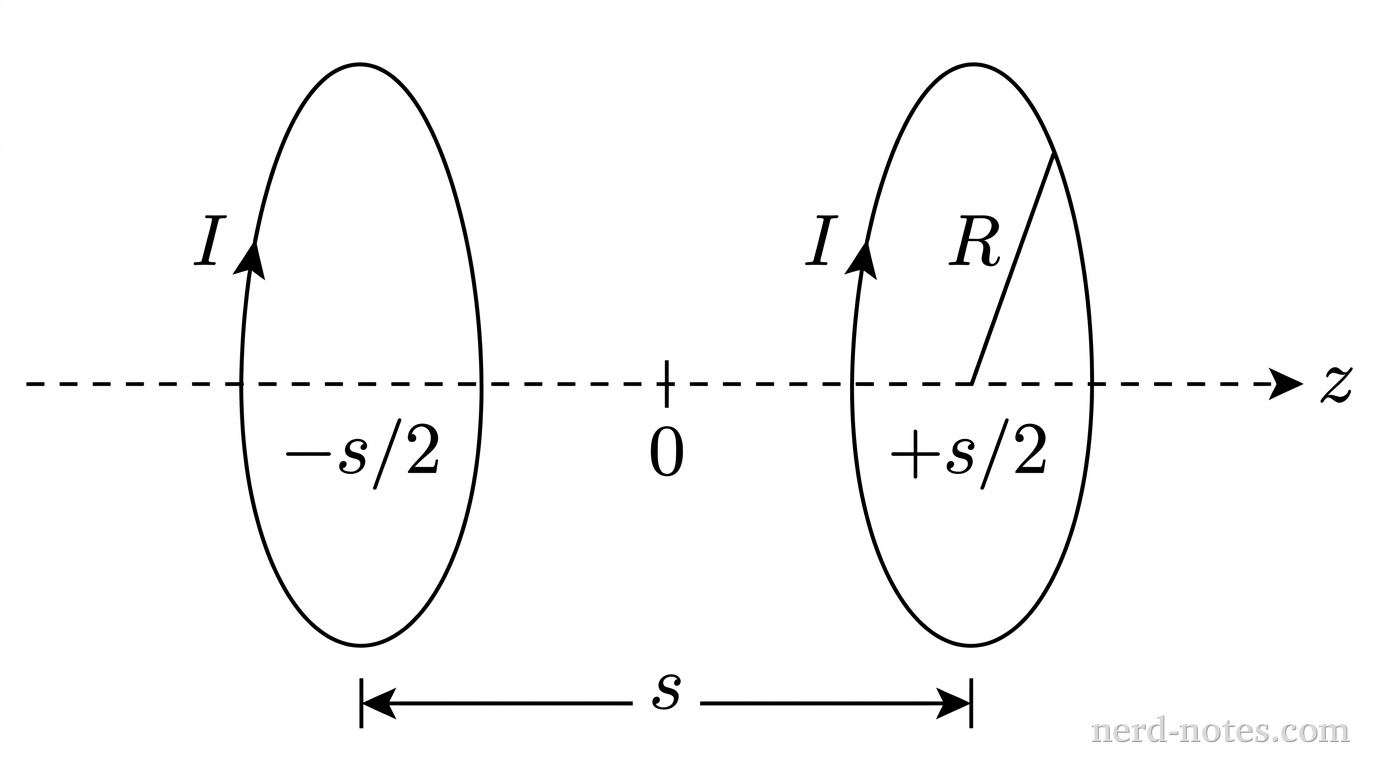

Two coaxial circular loops of radius \(R\) carrying current \(I\) separated by distance \(s\).
Two coaxial circular loops of radius \(R\) carrying current \(I\) separated by distance \(s\).
A Helmholtz coil system consists of two identical coaxial circular loops of radius \(R\), each carrying a steady current \(I\) in the same direction, separated by an adjustable distance \(s\). The axial magnetic field produced by a single loop centered at the origin is given by \(B_1(z) = \dfrac{\mu_0 I R^2}{2(R^2 + z^2)^{3/2}}\). By symmetry, the first derivative \(\left.\dfrac{dB}{dz}\right|_{z=0}\) is zero at the midpoint \(z = 0\) between the coils for any separation \(s\). To achieve maximum field uniformity near the midpoint, the second derivative must also vanish, such that \(\left.\dfrac{d^2B}{dz^2}\right|_{z=0} = 0\).

What coil separation \(s\) satisfies this uniformity condition, and what is the resulting net magnetic field magnitude \(B(0)\) at the midpoint?
