AP Physics C: Mechanics
1.5 Motion in Two or Three Dimensions
1.4 Reference Frames and Relative Motion
AdvancedMCQMathematicalConceptual16.4k

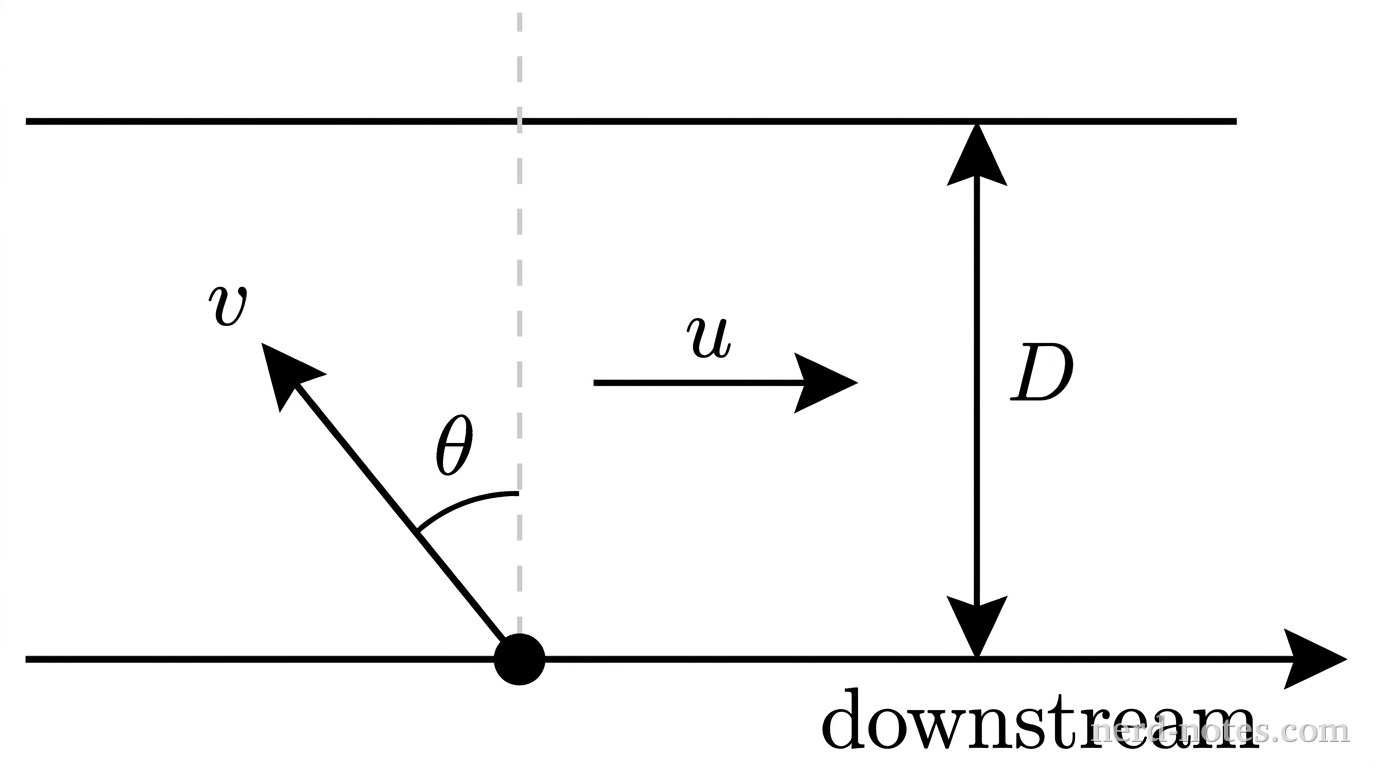

A schematic showing a river crossing viewed from above. Two horizontal parallel solid lines represent the river banks separated by a vertical distance labeled D, with a double-headed vertical dimension arrow between them. A horizontal arrow pointing to the right is positioned between the banks and labeled u, indicating the river flow. At the bottom bank, a dot marks the starting position of a boat. A vertical dashed line extends upward from the dot across the river, perpendicular to the banks. An arrow labeled v originates at the dot, directed into the upper-left quadrant at an angle \theta to the left of the vertical dashed line. An arc between the vertical dashed line and the arrow labeled v denotes the angle \theta. An axis arrow along the bottom bank points to the right, labeled with a downstream direction. No other labels, lines, text, or axes appear.
Boat heading upstream at angle \(\theta\) relative to the perpendicular across a river of width \(D\).
A boat crosses a straight river of width \(D\) that flows with a constant, uniform speed \(u\) parallel to its banks. The boat maintains a constant speed \(v\) relative to the water, where \(v < u\). To minimize the total downstream drift distance \(\Delta x\), the boat steers at an angle \(\theta\) upstream relative to the line perpendicular to the bank, resulting in a minimum drift distance of
\[\Delta x_{\text{min}} = D\sqrt{\left(\dfrac{u}{v}\right)^2 - 1}\]
In the limit as the boat's speed approaches the river's speed from below (\(v \to u^{-}\)), which of the following correctly describes the minimum downstream drift distance and the time required to cross the river?
