| Step | Derivation/Formula | Reasoning |
|---|---|---|

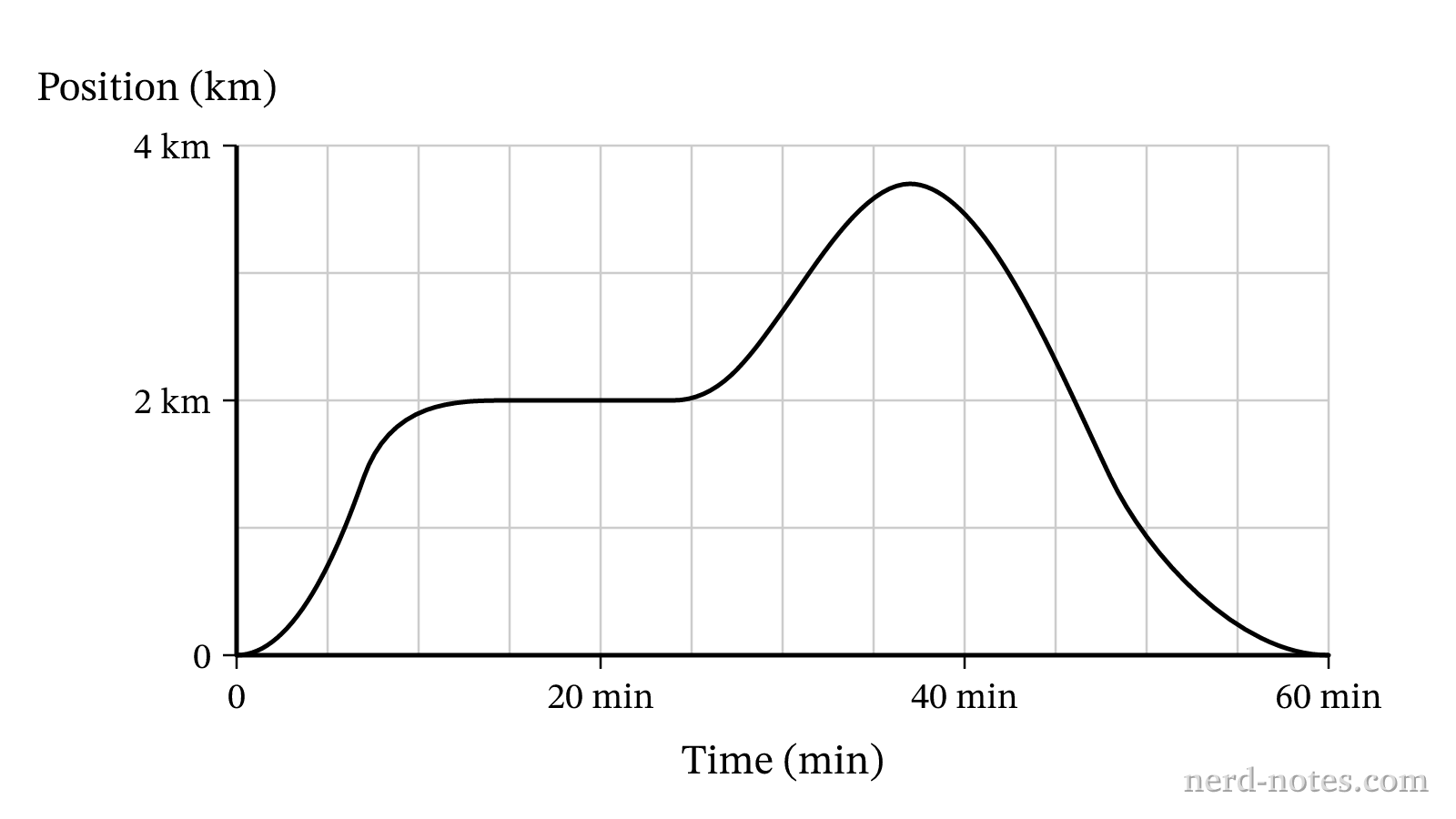

| 1 | N/A | Identify intervals where the curve has upward concavity (concave up) on the distance vs. time graph. Positive acceleration occurs where the curvature is upwards. |
| 2 | N/A | At about 5 minutes, the slope of the curve transitions from zero to a positive value, indicating a positive change in velocity, which corresponds to positive acceleration. |
| 3 | N/A | At about 29 minutes, the slope of the curve similarly changes positively, indicating positive acceleration. |
| 4 | N/A | At about 57 minutes, the curve becomes concave up again, indicating a change from a negative slope to zero, resulting in a positive change in velocity, hence positive acceleration. |
| 5 | N/A | From the intervals identified, there is positive acceleration at 5, 29, and 57 minutes. |
| 6 | \( \boxed{\text{5, 29, \& 57 min}} \) | Therefore, the car has positive acceleration at these times, corresponding to option (c). |
Note that instead of looking purely at the concavity, you can also mathematically determine where the change in slope is positive.
For example, at the \( 57 \)-minute mark, we see that the slope changes from a negative value to \( 0 \). To find the change in velocity apply:
\[\Delta v = v_f – v_i\]
So,
\[0 – \text{(negative slope value)} = \text{positive change in velocity} = \text{positive acceleration}.\]
