5.6 Newton’s Second Law in Rotational Form
5.4 Rotational Inertia
5.3 Torque
2.5 Newton’s Second Law
2.2 Forces and Free-Body Diagrams
Multi-Unit
IntermediateFRQDrawing RepresentationsMathematicalProportional AnalysisConceptual17.5k

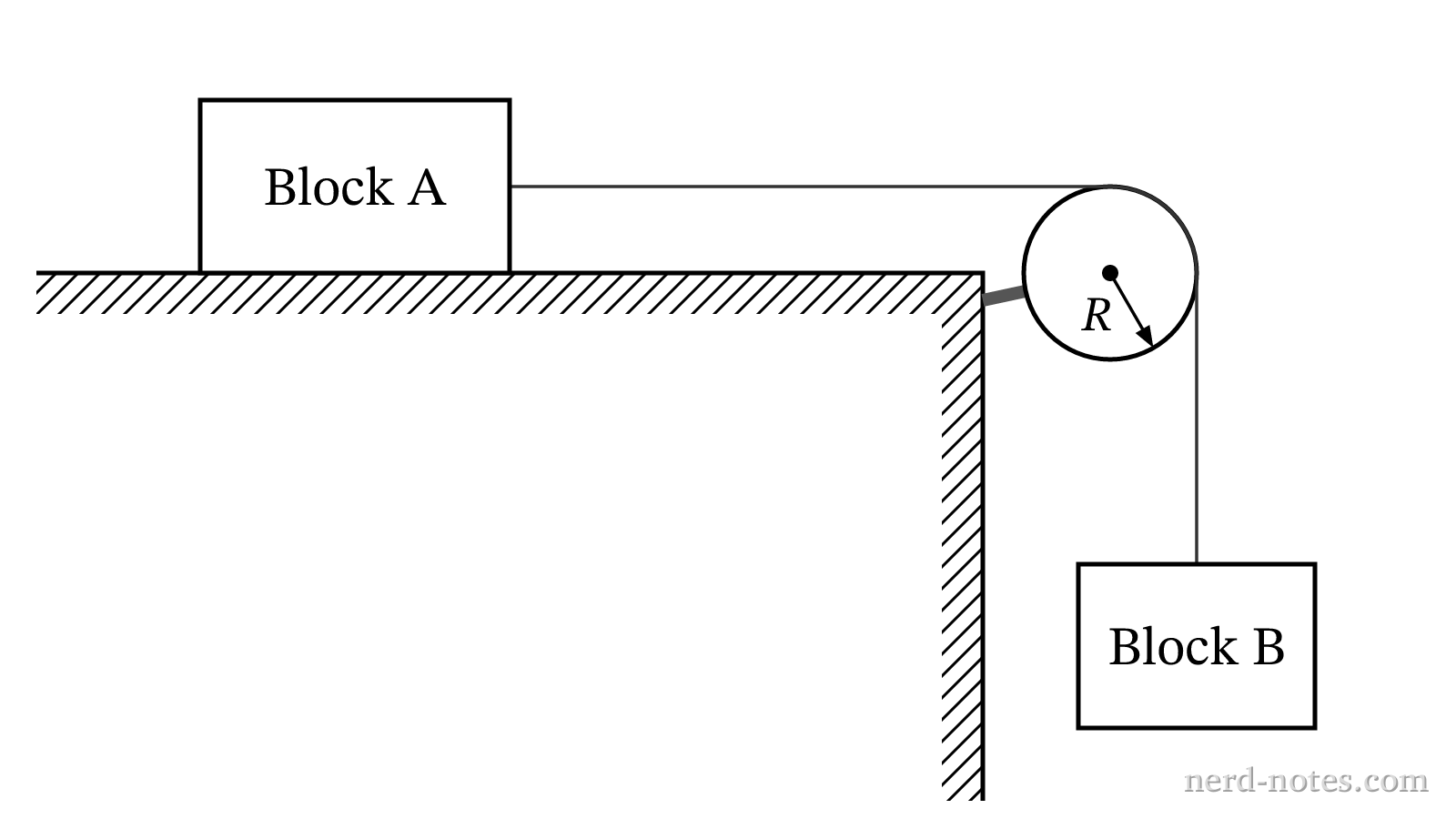

Figure 1. Block A on a table connected to hanging Block B via a massive pulley.
Figure 1. Block A on a table connected to hanging Block B via a massive pulley.
Block A of mass \(m_A\) rests on a horizontal, frictionless tabletop. It is connected by a light string that passes over a pulley to Block B of mass \(m_B\), which hangs freely over the edge of the table. The pulley is a solid uniform disk of mass \(M\) and radius \(R\), and it rotates on a frictionless axle. The rotational inertia of a solid disk is \(I = \dfrac{1}{2}MR^2\). The string does not slip on the pulley. The system is released from rest.
