| Step | Reasoning |
|---|---|
| Identify the relationship between initial energy and final state for a non-isolated system. \[ E_i + W_{ext} = E_f \] |

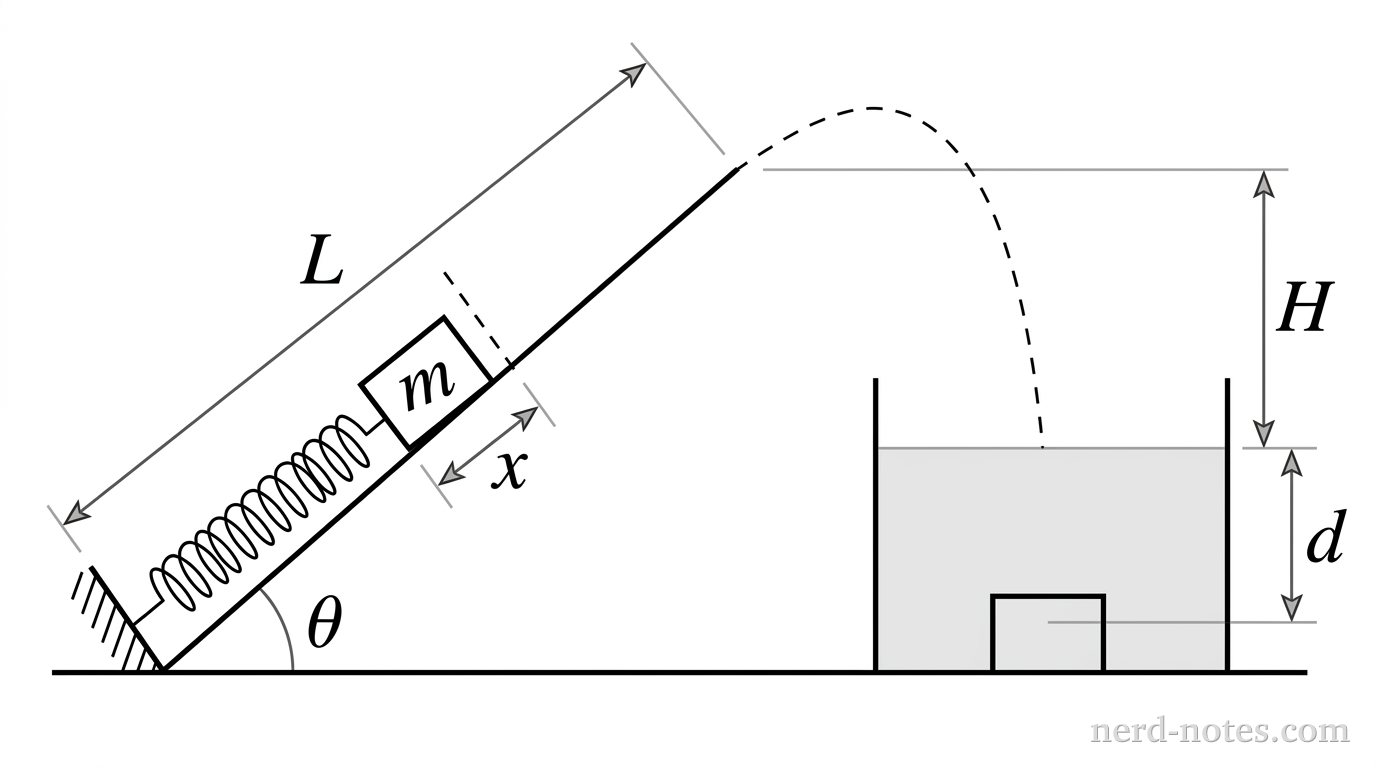

The question asks for an expression relating the start and end states, where non-conservative forces (friction and drag) and external forces (spring and buoyancy) are present. |
| Define the initial mechanical energy of the block-Earth system. \[ E_i = 0 \quad \text{and} \quad W_{spring} = \dfrac{1}{2}kx^2 \] |
The system starts with energy stored in the compressed spring, which will be transferred to the block as work. |
| Calculate the work done by non-conservative and fluid forces during the motion. \[ \begin{align*} W_{fric} &= -(\mu mg\cos\theta)L \\ W_{drag} &= -F_R d \\ W_{buoy} &= -F_B d = -\left(\dfrac{\rho_w}{\rho_b}mg\right)d \end{align*} \] |
Friction on the ramp, resistive drag in the water, and the buoyant force all do work on the block as it moves. Note that the buoyant force \(F_B = \rho_w V g = \rho_w (m/\rho_b) g\). |
| Determine the final gravitational potential energy of the block relative to the launch point. \[ h_{final} = L\sin\theta – H – d \Rightarrow GPE_f = mg(L\sin\theta – H – d) \] |
The final energy of the block-Earth system is purely potential once the block comes to rest at depth \(d\). |
| Assemble the energy balance equation and solve for the spring energy term. \[ \begin{align*} \dfrac{1}{2}kx^2 – \mu mgL\cos\theta – F_R d – \dfrac{\rho_w}{\rho_b}mgd &= mg(L\sin\theta – H – d) \\ \dfrac{1}{2}kx^2 &= mg(L\sin\theta – H – d) + \mu mgL\cos\theta + F_R d + \dfrac{\rho_w}{\rho_b}mgd \end{align*} \] |
Combining all terms into the energy balance \(W_{spring} + W_{fric} + W_{drag} + W_{buoy} = GPE_f\) yields the final expression. |
Why each choice is correct or incorrect:
(A) This is the correct answer.
(B) Uses sin(theta) for the normal force, which incorrectly calculates the work done by friction on the ramp.
(C) Summates all vertical height magnitudes, failing to distinguish between upward and downward vertical displacements in the gravitational potential energy calculation.
(D) Subtracts the term representing the work done by the buoyant force, which implies buoyancy assists the downward motion instead of opposing it.
