Two-loop circuit schematic with shared central branch.
Two-loop circuit schematic with shared central branch.

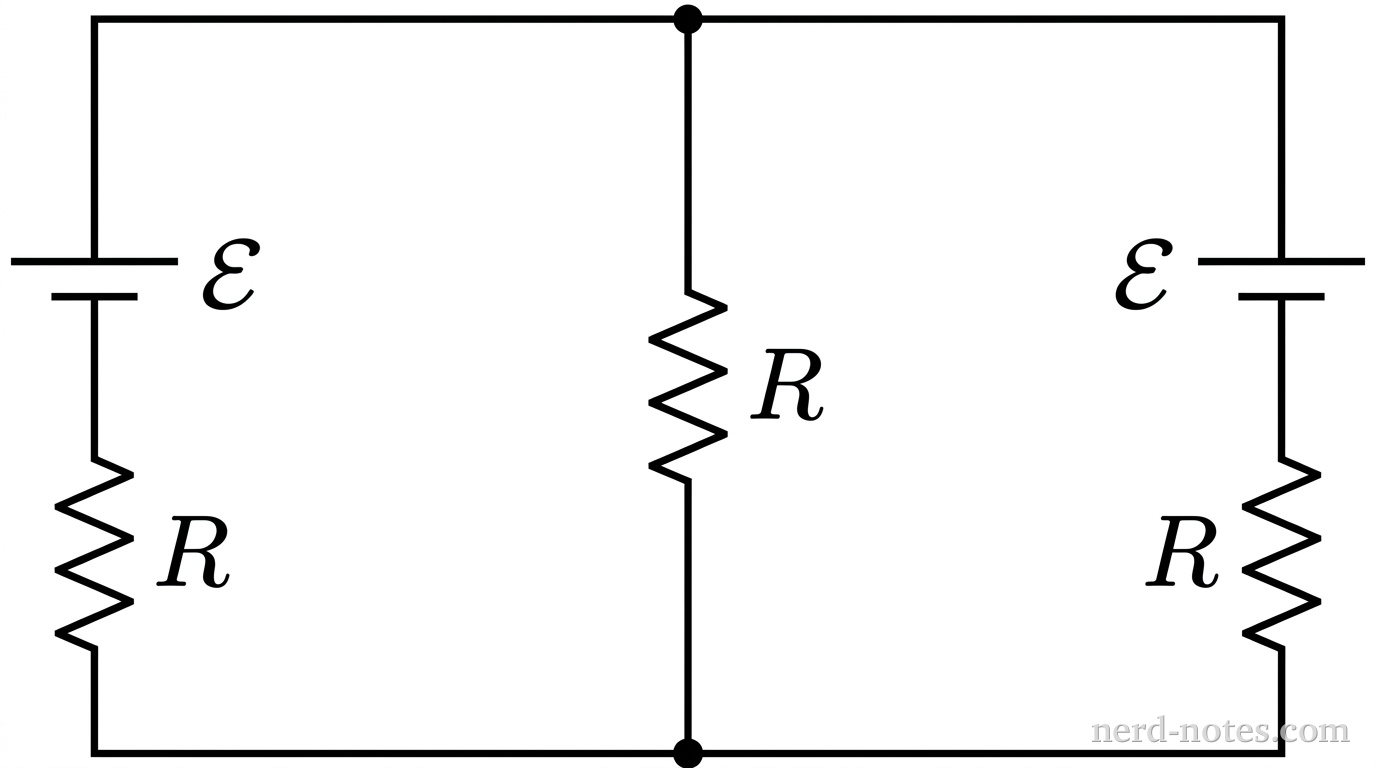

A circuit consists of two loops that share a central branch. The left branch contains an ideal battery of emf \(\mathcal{E}\) and a resistor of resistance \(R\). The right branch contains an identical ideal battery of emf \(\mathcal{E}\) and a resistor of resistance \(R\), with both batteries oriented to drive current toward the upper junction. The central branch contains a single resistor of resistance \(R\). What is the magnitude of the potential difference across the central resistor?
