BeginnerMCQMathematicalProportional Analysis21.7k

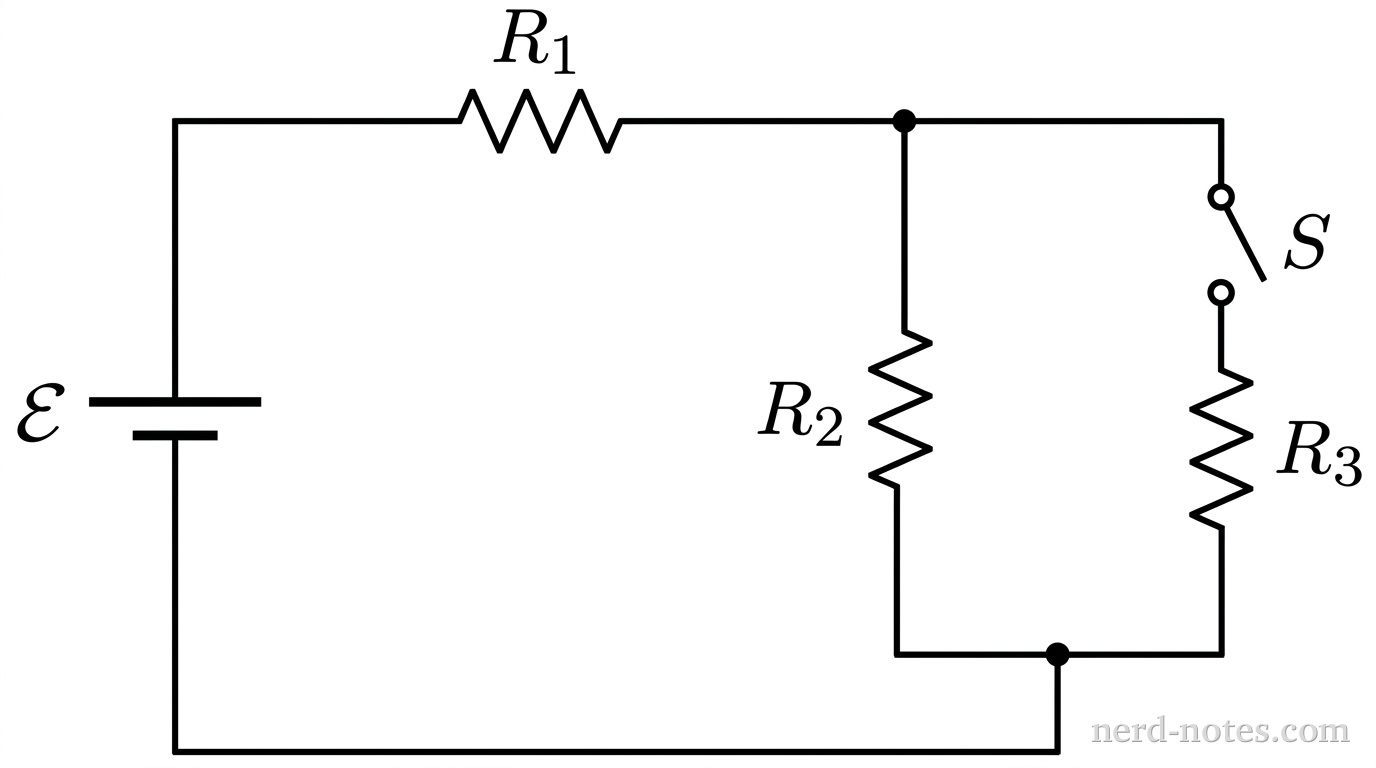

A circuit containing an ideal battery, three identical resistors, and an open switch.
A circuit containing an ideal battery, three identical resistors, and an open switch.
The circuit shown consists of an ideal battery of electromotive force \(\mathcal{E}\), three identical resistors each of resistance \(R\), and an open switch \(S\). Resistor \(R_1\) is connected in series with the parallel combination of resistor \(R_2\) and the branch containing switch \(S\) and resistor \(R_3\). When switch \(S\) is closed, what is the current passing through resistor \(R_2\)?
