Circuit schematic with a non-ideal battery and two parallel load resistors.
Circuit schematic with a non-ideal battery and two parallel load resistors.

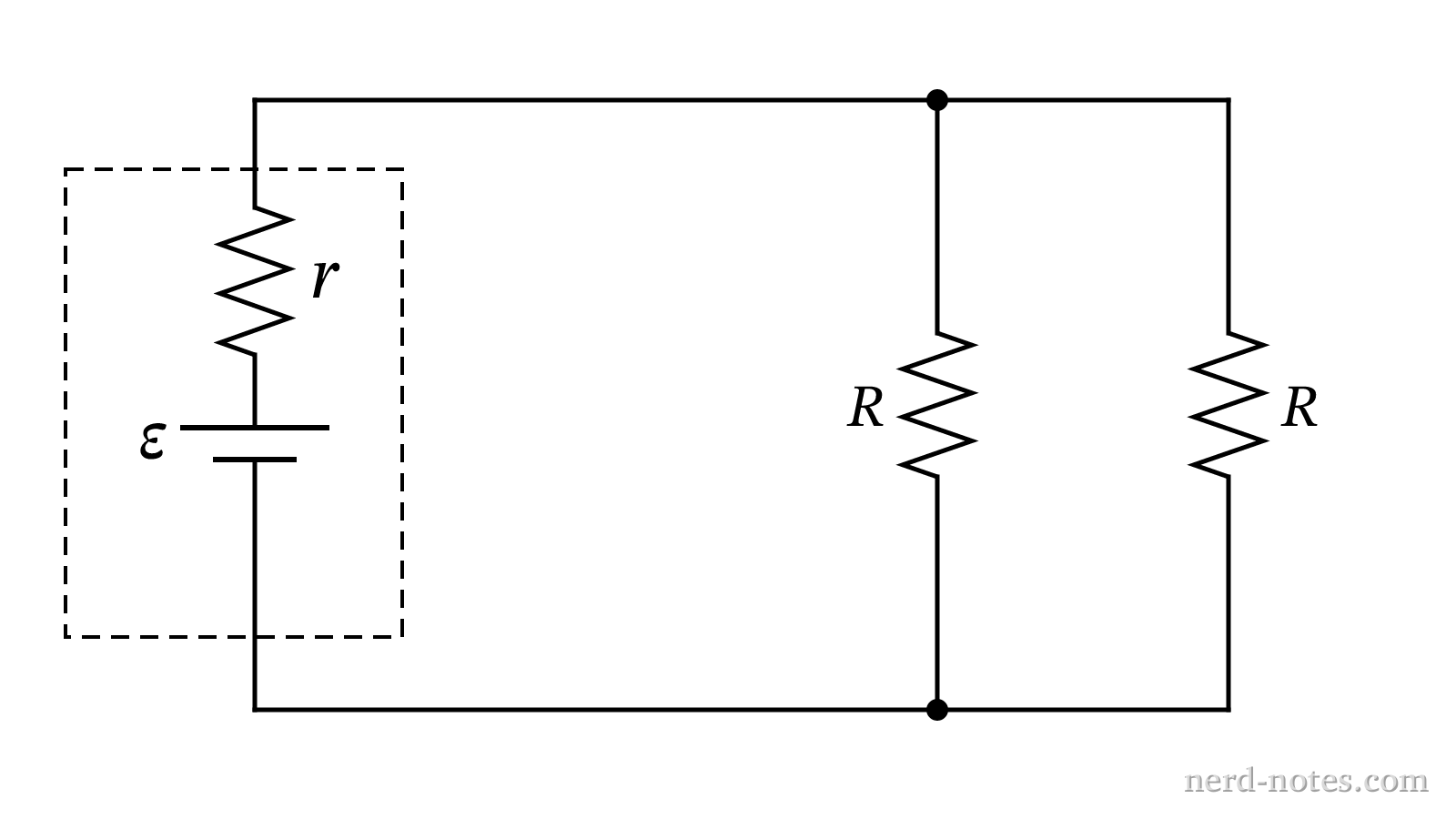

A battery with electromotive force \(\varepsilon\) and internal resistance \(r\) is connected to two identical external resistors, each of resistance \(R\), connected in parallel with each other as shown in the circuit diagram.

Which of the following expressions represents the total rate of electrical energy dissipation in the two external resistors in terms of \(\varepsilon\), \(r\), and \(R\)?
