AdvancedMCQMathematicalConceptual16.9k

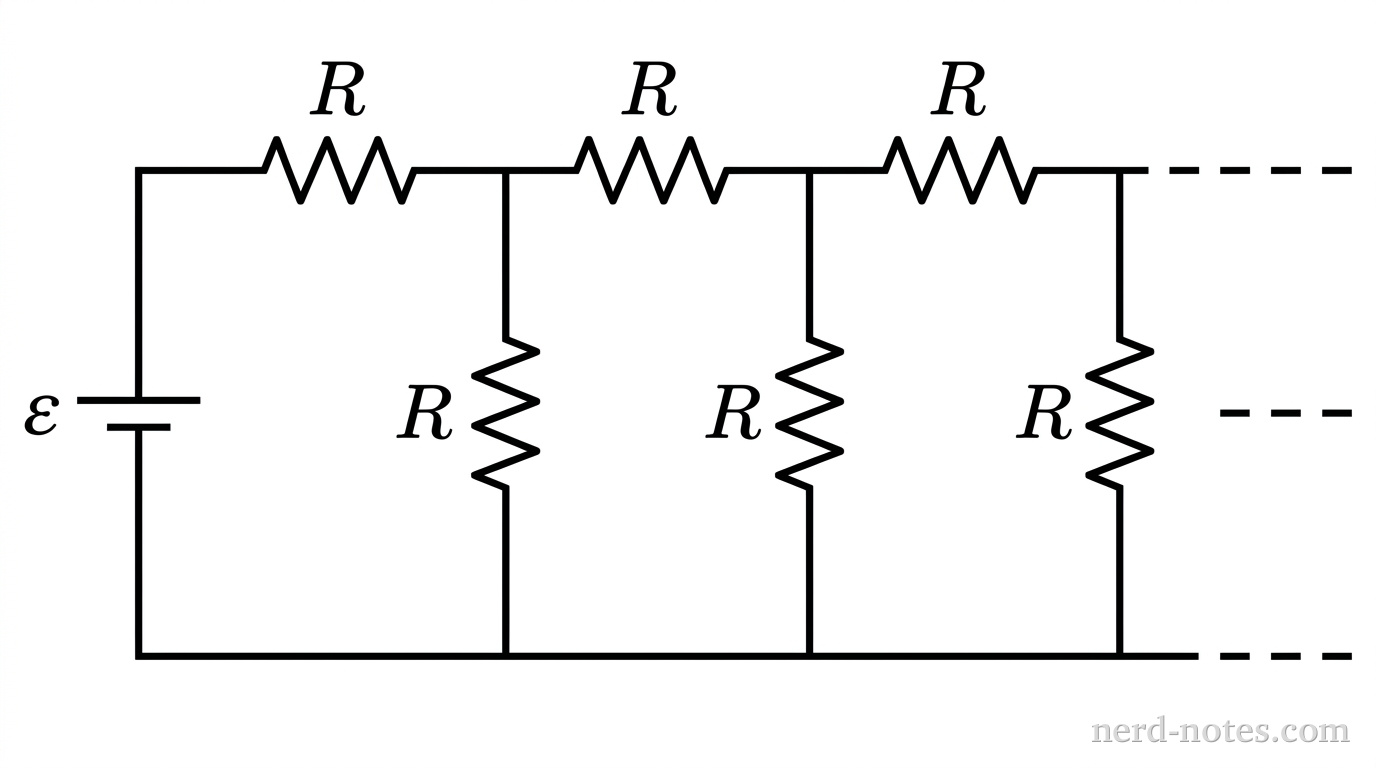

An infinite ladder network of identical resistors connected to an ideal battery.
An infinite ladder network of identical resistors connected to an ideal battery.
An infinite ladder network is constructed from identical resistors, each of resistance \(R\). The network is connected across an ideal battery of electromotive force \(\mathcal{E}\), with repeating stages extending indefinitely to the right, where each stage consists of one series resistor along the top rail and one parallel resistor bridging the top and bottom rails. In terms of \(\mathcal{E}\) and \(R\), which of the following expressions represents the total electric current supplied by the battery to the network?
