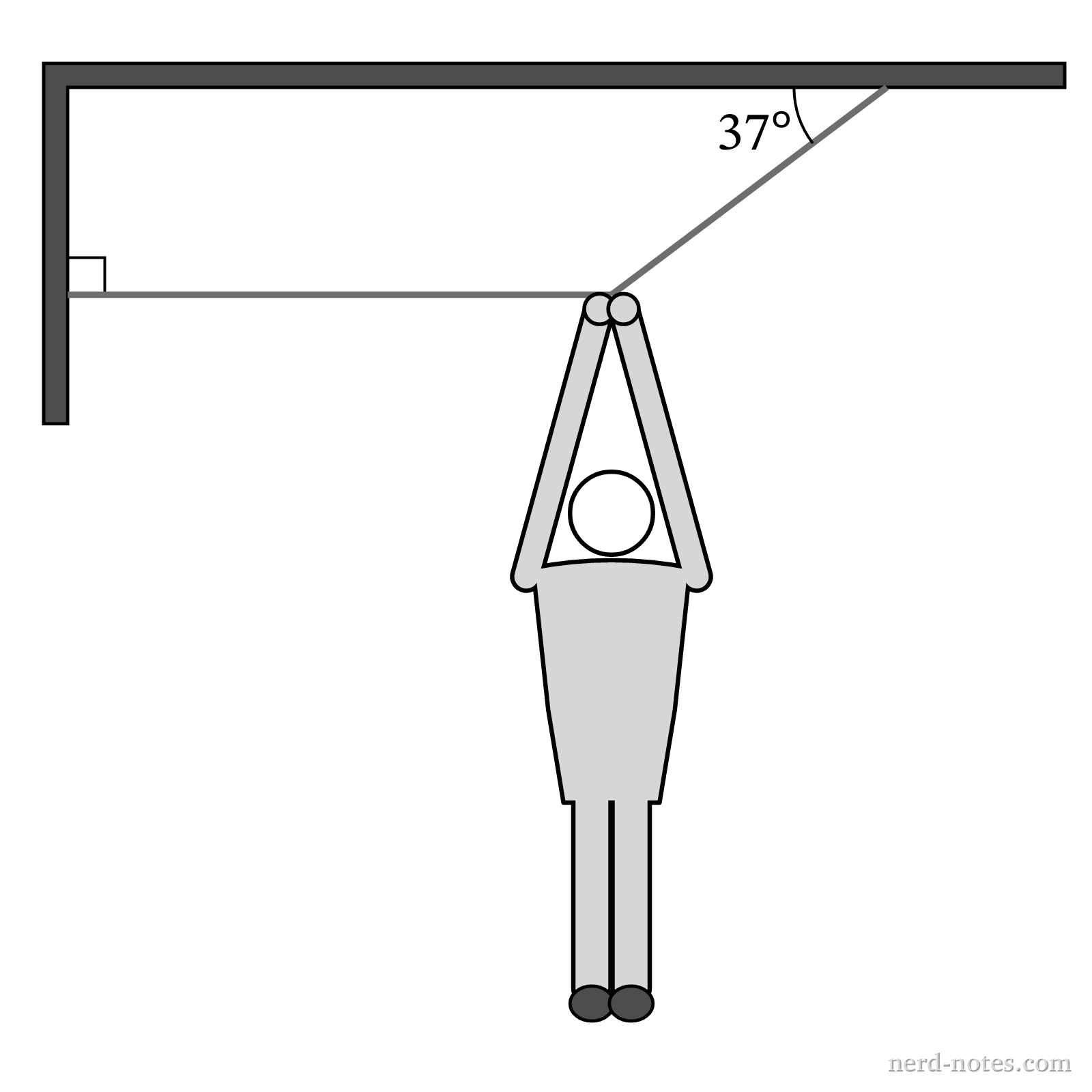

Note \(T_a \) represents tension in the angled wire. \(T_h \) represents tension in the horizontal wire.
| Step | Derivation/Formula | Reasoning |
|---|---|---|
| 1 | \[W = 600\,\text{N}\] | Define the gymnast’s weight \(W\). |
| 2 | \[\sum F_x :\; T_a \cos 37^\circ – T_h = 0\] | Horizontal equilibrium: the horizontal component of \(T_a\) balances \(T_h\). |
| 3 | \[\sum F_y :\; T_a \sin 37^\circ – W = 0\] | Vertical equilibrium: the upward component of \(T_a\) supports the weight. |
| 4 | \[T_a = \frac{W}{\sin 37^\circ}\] | Solve the vertical equilibrium equation for the angled-cable tension \(T_a\). |
| 5 | \[T_a = \frac{600}{\sin 37^\circ} \approx 9.97\times10^2\,\text{N}\] | Insert \(W = 600\,\text{N}\) and \(\sin 37^\circ \approx 0.602\). |
| 6 | \[T_h = T_a \cos 37^\circ\] | Use the horizontal equilibrium equation to solve for the horizontal-cable tension \(T_h\). |
| 7 | \[T_h = 9.97\times10^2 \times \cos 37^\circ \approx 7.96\times10^2\,\text{N}\] | Insert \(T_a\) and \(\cos 37^\circ \approx 0.799\). |
| 8 | \[\boxed{T_a \approx 1.0 \text{ kN}},\;\boxed{T_h \approx 8.0\times10^2 \text{ N}}\] | Final tensions in the angled and horizontal cables. |
A Major Upgrade To Phy Is Coming Soon — Stay Tuned
We'll help clarify entire units in one hour or less — guaranteed.
A self paced course with videos, problems sets, and everything you need to get a 5. Trusted by over 15k students and over 200 schools.
A 135.0 N force is applied to a 30.0 kg box at 42 degree angle to the horizontal. If the force of friction is 85.0, what is the net force and acceleration? If the object starts from rest, how far has it traveled in 3.3 sec?
A horizontal spring with spring constant 162 N/m is compressed 50 cm and used to launch a 3 kg box across a frictionless, horizontal surface. After the box travels some distance, the surface becomes rough. The coefficient of kinetic friction of the box on the rough surface is 0.2. Find the total distance the box travels before stopping.
A spacecraft somewhere in between the Earth and the Moon experiences zero net force acting on it. This is because the Earth and the Moon pull the spacecraft in equal but opposite directions. Find the distance \(D\) away from Earth such that the spacecraft experiences zero net force. The distance between the Moon and Earth is \(\sim 3.844 \times 10^8 \, \text{m}\).
Note: You may need the mass of the Earth and the Moon. You can find this in the formula table.
Determine the distance from the Earth’s center to a point outside the Earth where the gravitational acceleration due to the Earth is \( \dfrac{1}{10} \) of its value at the Earth’s surface.
A spring stretches \( 8.0 \) \( \text{cm} \) when a \( 13 \) \( \text{N} \) force is applied. How far does it stretch when a \( 26 \) \( \text{N} \) force is applied?
The cart with mass \( M = 3 \, \text{kg} \) is pulled by a massless string and moving on a horizontal track. A weight with mass \( m = 1 \, \text{kg} \) is hung from the other end of the string through a pulley system. Due to the gravitational force acting on the weight of mass \( m \), the cart is accelerated to the left. Find the tension in the string.
According to Newton’s third law, each team in a tug of war pulls with equal force on the other team. What, then, determines which team will win?
A vertical rope of negligible mass supports a block that weighs \(30 N\). The breaking strength of the rope is \( 50 N\). The largest acceleration that can be given to the block by pulling up on it with the rope without breaking the rope is most nearly
A \(6 \, \text{kg}\) cube rests against a compressed spring with a force constant of \(1{,}800 \, \text{N/m}\), initially compressed by \(0.3 \, \text{m}\). Upon release, the cube slides on a horizontal surface with a kinetic friction coefficient of \(\mu_k = 0.12\) for \(3 \, \text{m}\), then ascends a \(12^\circ\) slope, stopping after \(4.5 \, \text{m}\). Determine the coefficient of kinetic friction on the slope.
A person pulls a rope with a force \( F \) at an angle of \( 60^\circ \) to the horizontal. The rope is connected to a load over a frictionless pulley as shown in the diagram. The load is stationary. Which of the following is correct about the weight of the load and the net force exerted on the pulley by the rope?
\(T_a \approx 1.0 \times 10^3 \\text{ N}\)
\(T_h \approx 8.0 \times 10^2 \\text{ N}\)
Note \(T_a \) represents tension in the angled wire. \(T_h \) represents tension in the horizontal wire.
By continuing you (1) agree to our Terms of Use and Terms of Sale and (2) consent to sharing your IP and browser information used by this site’s security protocols as outlined in our Privacy Policy.
| Kinematics | Forces |
|---|---|
| \(\Delta x = v_i t + \frac{1}{2} at^2\) | \(F = ma\) |
| \(v = v_i + at\) | \(F_g = \frac{G m_1 m_2}{r^2}\) |
| \(v^2 = v_i^2 + 2a \Delta x\) | \(f = \mu N\) |
| \(\Delta x = \frac{v_i + v}{2} t\) | \(F_s =-kx\) |
| \(v^2 = v_f^2 \,-\, 2a \Delta x\) |
| Circular Motion | Energy |
|---|---|
| \(F_c = \frac{mv^2}{r}\) | \(KE = \frac{1}{2} mv^2\) |
| \(a_c = \frac{v^2}{r}\) | \(PE = mgh\) |
| \(T = 2\pi \sqrt{\frac{r}{g}}\) | \(KE_i + PE_i = KE_f + PE_f\) |
| \(W = Fd \cos\theta\) |
| Momentum | Torque and Rotations |
|---|---|
| \(p = mv\) | \(\tau = r \cdot F \cdot \sin(\theta)\) |
| \(J = \Delta p\) | \(I = \sum mr^2\) |
| \(p_i = p_f\) | \(L = I \cdot \omega\) |
| Simple Harmonic Motion | Fluids |
|---|---|
| \(F = -kx\) | \(P = \frac{F}{A}\) |
| \(T = 2\pi \sqrt{\frac{l}{g}}\) | \(P_{\text{total}} = P_{\text{atm}} + \rho gh\) |
| \(T = 2\pi \sqrt{\frac{m}{k}}\) | \(Q = Av\) |
| \(x(t) = A \cos(\omega t + \phi)\) | \(F_b = \rho V g\) |
| \(a = -\omega^2 x\) | \(A_1v_1 = A_2v_2\) |
| Constant | Description |
|---|---|
| [katex]g[/katex] | Acceleration due to gravity, typically [katex]9.8 , \text{m/s}^2[/katex] on Earth’s surface |
| [katex]G[/katex] | Universal Gravitational Constant, [katex]6.674 \times 10^{-11} , \text{N} \cdot \text{m}^2/\text{kg}^2[/katex] |
| [katex]\mu_k[/katex] and [katex]\mu_s[/katex] | Coefficients of kinetic ([katex]\mu_k[/katex]) and static ([katex]\mu_s[/katex]) friction, dimensionless. Static friction ([katex]\mu_s[/katex]) is usually greater than kinetic friction ([katex]\mu_k[/katex]) as it resists the start of motion. |
| [katex]k[/katex] | Spring constant, in [katex]\text{N/m}[/katex] |
| [katex] M_E = 5.972 \times 10^{24} , \text{kg} [/katex] | Mass of the Earth |
| [katex] M_M = 7.348 \times 10^{22} , \text{kg} [/katex] | Mass of the Moon |
| [katex] M_M = 1.989 \times 10^{30} , \text{kg} [/katex] | Mass of the Sun |
| Variable | SI Unit |
|---|---|
| [katex]s[/katex] (Displacement) | [katex]\text{meters (m)}[/katex] |
| [katex]v[/katex] (Velocity) | [katex]\text{meters per second (m/s)}[/katex] |
| [katex]a[/katex] (Acceleration) | [katex]\text{meters per second squared (m/s}^2\text{)}[/katex] |
| [katex]t[/katex] (Time) | [katex]\text{seconds (s)}[/katex] |
| [katex]m[/katex] (Mass) | [katex]\text{kilograms (kg)}[/katex] |
| Variable | Derived SI Unit |
|---|---|
| [katex]F[/katex] (Force) | [katex]\text{newtons (N)}[/katex] |
| [katex]E[/katex], [katex]PE[/katex], [katex]KE[/katex] (Energy, Potential Energy, Kinetic Energy) | [katex]\text{joules (J)}[/katex] |
| [katex]P[/katex] (Power) | [katex]\text{watts (W)}[/katex] |
| [katex]p[/katex] (Momentum) | [katex]\text{kilogram meters per second (kgm/s)}[/katex] |
| [katex]\omega[/katex] (Angular Velocity) | [katex]\text{radians per second (rad/s)}[/katex] |
| [katex]\tau[/katex] (Torque) | [katex]\text{newton meters (Nm)}[/katex] |
| [katex]I[/katex] (Moment of Inertia) | [katex]\text{kilogram meter squared (kgm}^2\text{)}[/katex] |
| [katex]f[/katex] (Frequency) | [katex]\text{hertz (Hz)}[/katex] |
Metric Prefixes
Example of using unit analysis: Convert 5 kilometers to millimeters.
Start with the given measurement: [katex]\text{5 km}[/katex]
Use the conversion factors for kilometers to meters and meters to millimeters: [katex]\text{5 km} \times \frac{10^3 \, \text{m}}{1 \, \text{km}} \times \frac{10^3 \, \text{mm}}{1 \, \text{m}}[/katex]
Perform the multiplication: [katex]\text{5 km} \times \frac{10^3 \, \text{m}}{1 \, \text{km}} \times \frac{10^3 \, \text{mm}}{1 \, \text{m}} = 5 \times 10^3 \times 10^3 \, \text{mm}[/katex]
Simplify to get the final answer: [katex]\boxed{5 \times 10^6 \, \text{mm}}[/katex]
Prefix | Symbol | Power of Ten | Equivalent |
|---|---|---|---|
Pico- | p | [katex]10^{-12}[/katex] | |
Nano- | n | [katex]10^{-9}[/katex] | |
Micro- | µ | [katex]10^{-6}[/katex] | |
Milli- | m | [katex]10^{-3}[/katex] | |
Centi- | c | [katex]10^{-2}[/katex] | |
Deci- | d | [katex]10^{-1}[/katex] | |
(Base unit) | – | [katex]10^{0}[/katex] | |
Deca- or Deka- | da | [katex]10^{1}[/katex] | |
Hecto- | h | [katex]10^{2}[/katex] | |
Kilo- | k | [katex]10^{3}[/katex] | |
Mega- | M | [katex]10^{6}[/katex] | |
Giga- | G | [katex]10^{9}[/katex] | |
Tera- | T | [katex]10^{12}[/katex] |
