| Step | Reasoning |
|---|---|
| Evaluate the conservation of linear momentum for the rod-clay system. \[ \Delta \vec{p} = \int \vec{F}_{ext} dt \] |

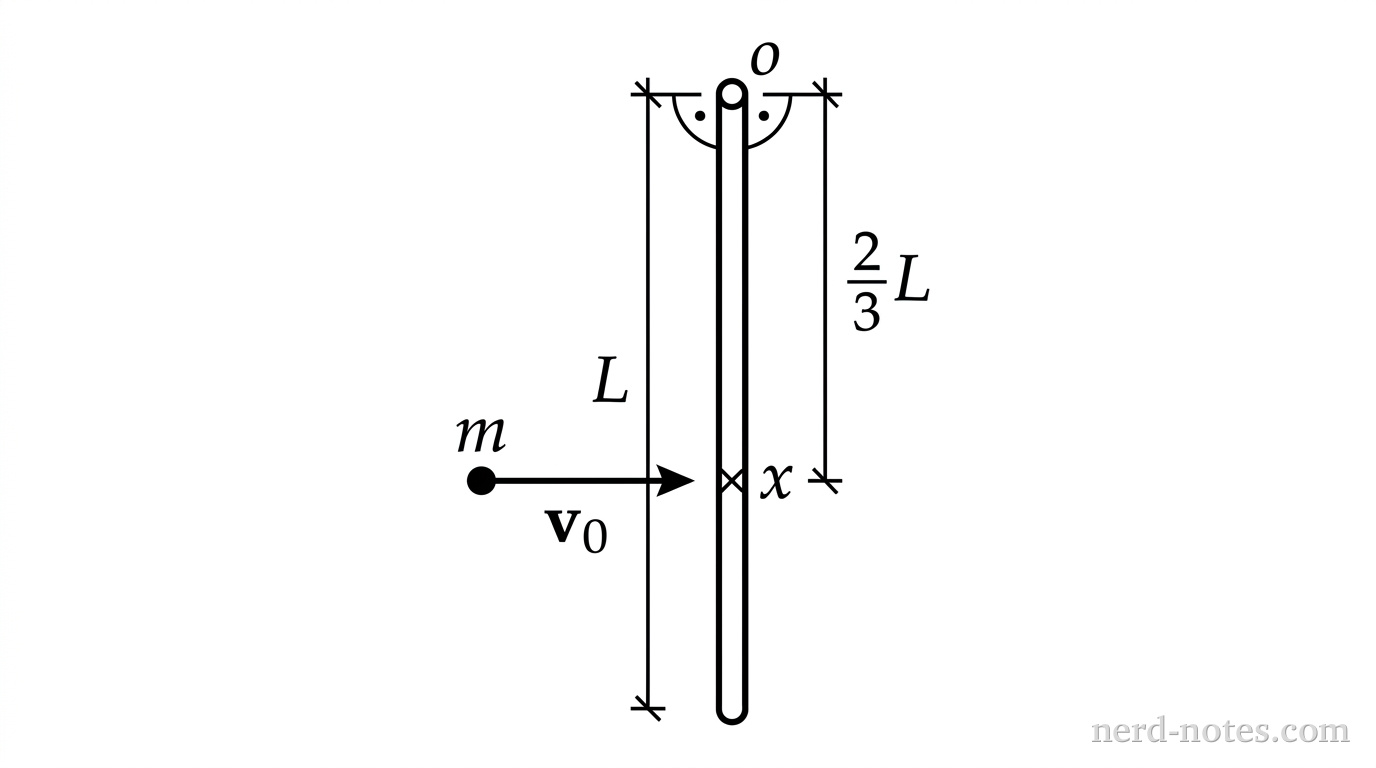

The question asks about the conservation of linear and angular momentum for the system during the collision. |
| Identify external forces acting on the system during the collision interval. null |
Linear momentum is only conserved if the net external force on the system is zero. |
| Determine that the pivot exerts an external horizontal force on the rod. \[ \vec{F}_{net, ext} = \vec{F}_{pivot} + \vec{F}_{gravity} \] |
To prevent the top of the rod from moving horizontally during the sudden impact of the clay, the pivot must exert a reactionary force. Because \( \vec{F}_{pivot} \neq 0 \), the linear momentum is not conserved. |
| Evaluate the conservation of angular momentum about the pivot axis. \[ \Delta \vec{L} = \int \vec{\tau}_{ext} dt \] |
Angular momentum is conserved if the net external torque about the chosen axis is zero. |
| Calculate the torque exerted by the external pivot force relative to the pivot itself. \[ \tau = rF\sin\theta \] |
Torque depends on the lever arm from the axis of rotation to the point of application of the force. |
| Conclude that the pivot force exerts zero torque. \[ \vec{\tau}_{pivot} = 0 \times F_{pivot} = 0 \] |
Since the force is applied exactly at the pivot, the lever arm \( r \) is zero. Gravity also acts through the center of mass, but during the near-instantaneous collision, the displacement is zero, and the torque from gravity is negligible compared to the collision forces. Thus, angular momentum about the pivot is conserved. |
Why each choice is correct or incorrect:
(A) Incorrectly assumes linear momentum is conserved by ignoring the external force exerted by the pivot on the rod to keep it fixed in space.
(B) This is the correct answer.
(C) Misidentifies the loss of kinetic energy as a reason for momentum non-conservation; momentum and angular momentum can be conserved even if kinetic energy is dissipated.
(D) Incorrectly claims the clay has no initial angular momentum; any object moving with linear momentum \( p \) has an angular momentum \( L = r_{\perp}p \) relative to a reference point.
