| Derivation/Formula | Reasoning |
|---|---|
| \[T = m \frac{v^2}{r} + m g \cos\theta\] | The cord provides the centripetal force \(m v^2 / r\). The radial component of the weight is \(m g \cos\theta\) (taken positive when it acts opposite the tension), so they add algebraically to give the total tension. |
| \[T_{\text{bottom}} = m\frac{v^2}{r} + m g\] | At the bottom of the circle \(\theta = 0^\circ\Rightarrow \cos\theta = 1\). Thus the entire weight acts opposite the tension, increasing it by \(m g\). |
| \[T_{\text{top}} = m\frac{v^2}{r} – m g\] | At the top \(\theta = 180^\circ\Rightarrow \cos\theta = -1\). The weight now acts in the same direction as the required centripetal force, so it reduces the required cord tension by \(m g\). |
| \[T_{\text{side}} = m\frac{v^2}{r}\] | At the side positions \(\theta = 90^\circ\) or \(270^\circ\), \(\cos\theta = 0\); the weight is perpendicular to the cord, so it does not change the tension. |
| \[T_{\text{bottom}} > T_{\text{side}} > T_{\text{top}}\] | Because \(m g > 0\), adding it at the bottom makes \(T_{\text{bottom}}\) the largest possible tension for the given constant speed. |
| Hence the cord is stretched most at the bottom of the circle — option (b).
• Option (a): top has smaller tension since \(m g\) subtracts. |
A Major Upgrade To Phy Is Coming Soon — Stay Tuned
We'll help clarify entire units in one hour or less — guaranteed.
In the figure above, the marble rolls down the track and around a loop-the-loop of radius \( R \). The marble has mass \( m \) and radius \( r \). What minimum height \( h_{min} \) must the track have for the marble to make it around the loop-the-loop without falling off? Express your answer in terms of the variables \( R \) and \( r \).
The maximum acceleration a pilot can withstand without blacking out is about \( 7.0 \) \( g \). In an endurance test for a jet plane’s pilot, what is the maximum speed he can tolerate if he is spun in a horizontal circle of diameter \( 85 \) \( \text{m} \)?
A simple pendulum consists of a bob of mass 1.8 kg attached to a string of length 2.3 m. The pendulum is held at an angle of 30° from the vertical by a light horizontal string attached to a wall, as shown above.
A satellite in circular orbit around the Earth moves at constant speed. This orbit is maintained by the force of gravity between the Earth and the satellite, yet no work is done on the satellite. How is this possible?
A \(2 \, \text{kg}\) ball is swung in a vertical circle. The length of the string the ball is attached to is \(0.7 \, \text{m}\). It takes \(0.4 \, \text{s}\) for the ball to travel one revolution (assume the ball travels at constant speed).
Are astronauts really “weightless” while in orbit?
The Moon does not crash into the Earth because:

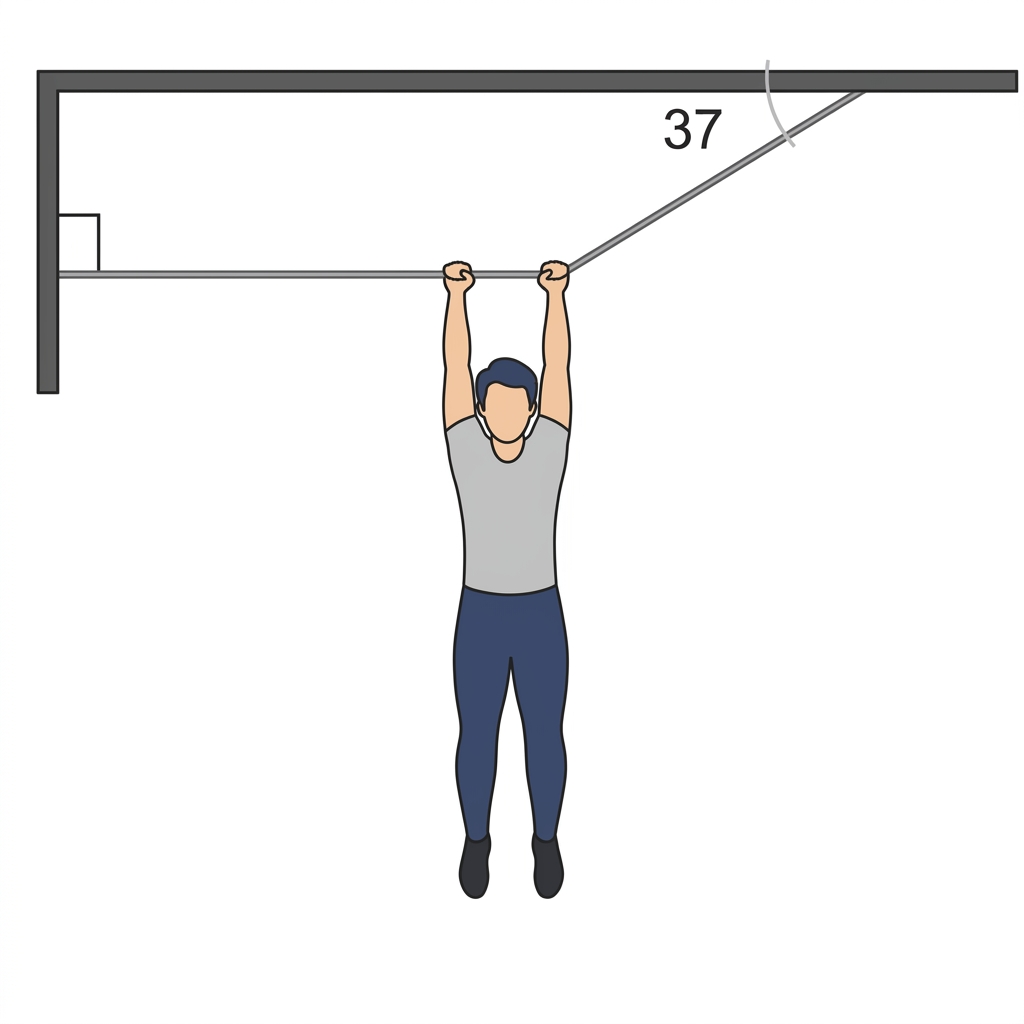

Find the tension in each cable supporting the gymnast who weighs \( 600 \) \( \text{N} \). The gymnast is at rest, holding a junction point where two cables are attached: one cable is horizontal, and the second cable is attached to the ceiling making an angle of \( 37^{\circ} \) above the horizontal, as shown in the diagram.
A small block slides without friction along a track toward a circular loop. The block has more than enough speed to remain firmly in contact with the track as it goes around the loop. The magnitude of the block’s acceleration at the top of the loop is
A person’s back is against the inner wall of a spinning cylinder with no support under their feet. If the radius is \(R\), find an expression for the minimum angular speed so the person does not slide down the wall. The coefficient of static friction is \(\mu_s\).
If you haven’t studied angular velocity \(\omega\) yet, just find the minumum linear velocity \(v\).
