| Step | Reasoning |
|---|---|
| Identify the target equation using Newton’s second law for the block’s circular motion. \[ \sum F_x = F_c = \dfrac{mv^2}{r} \quad \text{and} \quad \sum F_y = 0 \] |
The block moves in a horizontal circle, so the net horizontal force must provide the centripetal acceleration, and the net vertical force must be zero for constant height. |
| Resolve the forces acting on the block into horizontal and vertical components. \[ F_{Nx} = F_N \cos\theta = \dfrac{mv^2}{r} \] |
The only forces are gravity \(mg\) (downward) and the normal force \(F_N\) (perpendicular to the surface). If the surface makes angle \(\theta\) with the vertical, \(F_N\) makes angle \(\theta\) with the horizontal. |
| Apply the vertical equilibrium condition to find the magnitude of the normal force. \[ F_{Ny} = F_N \sin\theta = mg \implies F_N = \dfrac{mg}{\sin\theta} \] |
The vertical component of the normal force must balance the weight of the block because there is no vertical acceleration. |
| Substitute the expression for the normal force into the radial force equation. \[ \left( \dfrac{mg}{\sin\theta} \right) \cos\theta = \dfrac{mv^2}{r} \implies g \cot\theta = \dfrac{v^2}{r} \implies v^2 = rg \cot\theta \] |
This allows for the elimination of the unknown normal force to find a relationship between speed and the radius of the path. |

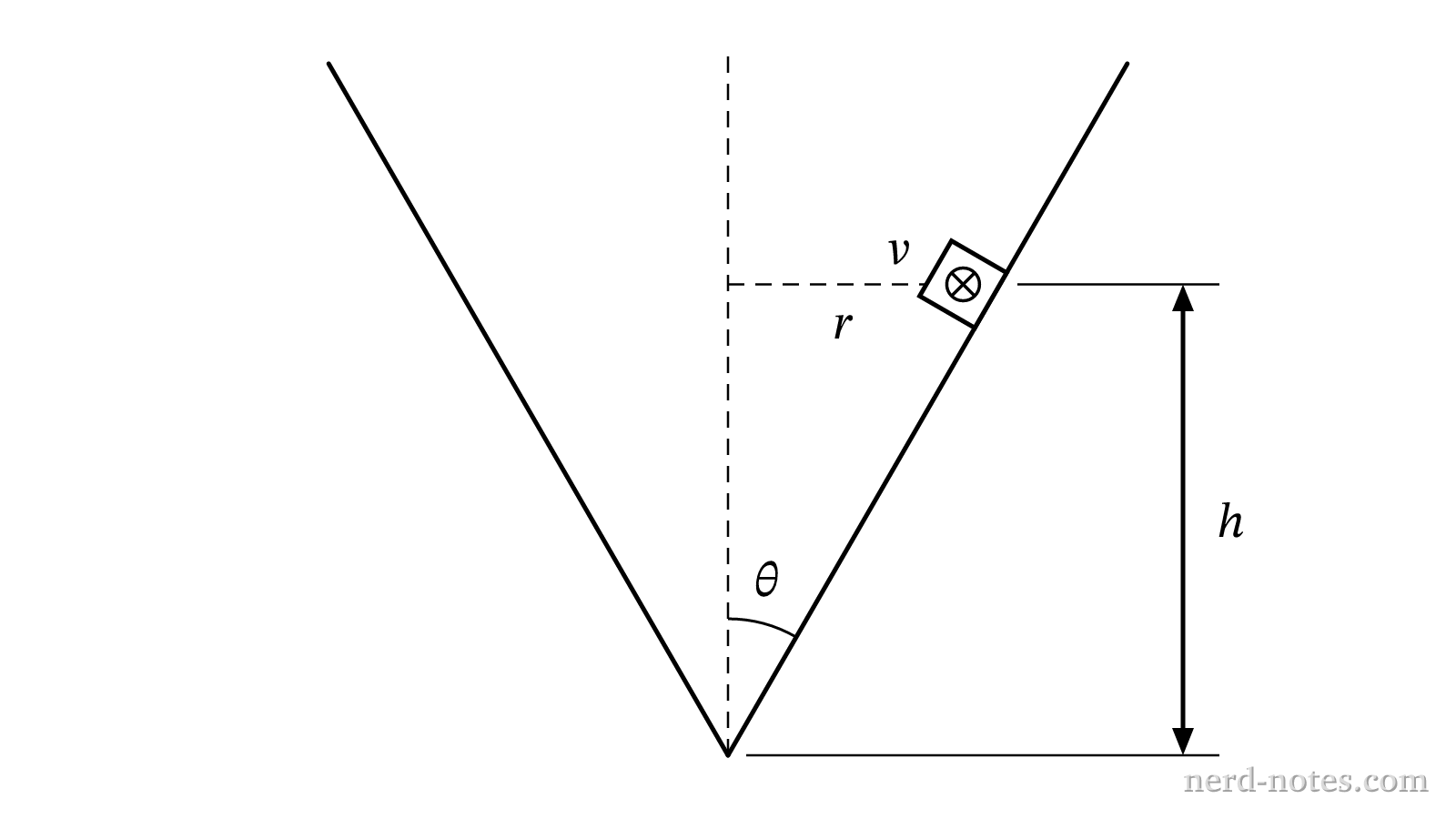

| Relate the radius \(r\) to the height \(h\) using the geometry of the cone. \[ \tan\theta = \dfrac{r}{h} \implies r = h \tan\theta \] |
The problem asks for an expression in terms of \(h\), not \(r\). From the right triangle formed by the radius, height, and funnel wall, we can use a trigonometric ratio. |
| Substitute the expression for \(r\) into the velocity equation and simplify. \[ v^2 = (h \tan\theta) g \cot\theta \] |
This final substitution provides the speed in terms of the requested variables and reveals the symbolic cancellation. |
| Finalize the derivation by recognizing the relationship between tangent and cotangent. \[ v^2 = hg(\tan\theta \cdot \dfrac{1}{\tan\theta}) = gh \implies v = \sqrt{gh} \] |
The product of tangent and cotangent is 1, causing the angular dependence to cancel out completely. |
Why each choice is correct or incorrect:
(A) This result stems from swapping the horizontal and vertical components of the normal force, leading to a \(\tan\theta\) term that does not cancel.
(B) This is the correct answer.
(C) This result occurs if the student fails to use the radial force equation and mistakenly tries to relate speed to height using a simple component of weight.
(D) This result occurs if the student correctly relates \(v^2\) to \(r\) but uses the incorrect trigonometric relationship \(r = h \tan^2\theta\) or makes a similar algebraic error.
A Major Upgrade To Phy Is Coming Soon — Stay Tuned
We'll help clarify entire units in one hour or less — guaranteed.
A self paced course with videos, problems sets, and everything you need to get a 5. Trusted by over 15k students and over 200 schools.
A car travels along a straight road between two cities separated by a total distance of \(2D\). The car travels the first distance \(D\) at a constant speed \(v_0\) and the remaining distance \(D\) at a constant speed \(3v_0\). Which of the following correctly identifies the average speed \(v_{avg}\) of the car for the entire trip and provides a valid justification?
A student conducts a laboratory experiment where a cart is moved \(2.0 \text{ m}\) to the right and then \(1.0 \text{ m}\) to the left along a straight, horizontal track. The student calculates the total distance traveled and the final displacement of the cart. Which of the following correctly classifies these quantities and provides a valid justification?
An experimental automated cart is tested on a linear track. A computer-controlled sensor measures the cart’s velocity \(v\) as a function of time \(t\), as shown in the graph. What is the displacement of the cart during the time interval from \(t = 0 \text{ s}\) to \(t = 10 \text{ s}\)?
A hiker starts at a trailhead and walks \(3.0 \text{ km}\) due North. The hiker then turns and walks \(5.0 \text{ km}\) in a direction \(37^\circ\) South of East to reach a campsite. (Note: \(\sin 37^\circ \approx 0.60\); \(\cos 37^\circ \approx 0.80\)). What is the magnitude of the hiker’s total displacement from the trailhead to the campsite?
A laboratory cart is restricted to motion along a horizontal track. A motion sensor records the direction of the cart’s velocity and the direction of its acceleration at three different times, as shown in the table below.
| Time | Direction of Velocity | Direction of Acceleration |
| :— | :— | :— |
| \(t_1\) | Right | Left |
| \(t_2\) | Left | Left |
| \(t_3\) | Left | Right |
Which of the following correctly describes the motion of the cart at each time?
A test rocket moves along a straight, horizontal track. A sensor records the rocket’s acceleration as a function of time, as shown in the graph below.
What is the average acceleration of the rocket during the time interval from \(t = 0 \text{ s}\) to \(t = 5 \text{ s}\)?
A sprinter crosses the finish line of a race moving with a velocity of \(12 \text{ m/s}\). The sprinter continues to run at this constant velocity for a reaction time of \(1.0 \text{ s}\) before beginning to slow down with a constant acceleration. If the sprinter comes to a complete stop exactly \(4.0 \text{ s}\) after crossing the finish line, what is the magnitude of the sprinter’s acceleration during the braking phase?
A surveyor starts at point \(P\) and walks a distance \(d\) due north. The surveyor then turns and walks an equal distance \(d\) in a direction \(60^{\circ}\) west of north to reach point \(Q\). What is the magnitude of the surveyor’s total displacement from point \(P\) to point \(Q\)?
A train is traveling at a constant speed \( v_0 \) when the engineer applies the brakes, resulting in a constant deceleration of magnitude \( a_0 \) that brings the train to a stop in a distance \( d \). In a second trial, the train is traveling at a speed \( 2v_0 \) when the brakes are applied and is brought to a stop with a constant deceleration of magnitude \( 2a_0 \). Which of the following is the stopping distance for the train in the second trial?
A small experimental vehicle starts from rest and accelerates with a constant acceleration \(a\) over a horizontal distance \(d\). After this distance, the vehicle’s engine is adjusted such that it continues to accelerate at a constant rate of \(\dfrac{a}{2}\) for an additional horizontal distance \(d\). Which of the following expressions represents the speed of the vehicle after it has traveled the total distance \(2d\)?
B
By continuing you (1) agree to our Terms of Use and Terms of Sale and (2) consent to sharing your IP and browser information used by this site’s security protocols as outlined in our Privacy Policy.
| Kinematics | Forces |
|---|---|
| \(\Delta x = v_i t + \frac{1}{2} at^2\) | \(F = ma\) |
| \(v = v_i + at\) | \(F_g = \frac{G m_1 m_2}{r^2}\) |
| \(v^2 = v_i^2 + 2a \Delta x\) | \(f = \mu N\) |
| \(\Delta x = \frac{v_i + v}{2} t\) | \(F_s =-kx\) |
| \(v^2 = v_f^2 \,-\, 2a \Delta x\) |
| Circular Motion | Energy |
|---|---|
| \(F_c = \frac{mv^2}{r}\) | \(KE = \frac{1}{2} mv^2\) |
| \(a_c = \frac{v^2}{r}\) | \(PE = mgh\) |
| \(T = 2\pi \sqrt{\frac{r}{g}}\) | \(KE_i + PE_i = KE_f + PE_f\) |
| \(W = Fd \cos\theta\) |
| Momentum | Torque and Rotations |
|---|---|
| \(p = mv\) | \(\tau = r \cdot F \cdot \sin(\theta)\) |
| \(J = \Delta p\) | \(I = \sum mr^2\) |
| \(p_i = p_f\) | \(L = I \cdot \omega\) |
| Simple Harmonic Motion | Fluids |
|---|---|
| \(F = -kx\) | \(P = \frac{F}{A}\) |
| \(T = 2\pi \sqrt{\frac{l}{g}}\) | \(P_{\text{total}} = P_{\text{atm}} + \rho gh\) |
| \(T = 2\pi \sqrt{\frac{m}{k}}\) | \(Q = Av\) |
| \(x(t) = A \cos(\omega t + \phi)\) | \(F_b = \rho V g\) |
| \(a = -\omega^2 x\) | \(A_1v_1 = A_2v_2\) |
| Constant | Description |
|---|---|
| [katex]g[/katex] | Acceleration due to gravity, typically [katex]9.8 , \text{m/s}^2[/katex] on Earth’s surface |
| [katex]G[/katex] | Universal Gravitational Constant, [katex]6.674 \times 10^{-11} , \text{N} \cdot \text{m}^2/\text{kg}^2[/katex] |
| [katex]\mu_k[/katex] and [katex]\mu_s[/katex] | Coefficients of kinetic ([katex]\mu_k[/katex]) and static ([katex]\mu_s[/katex]) friction, dimensionless. Static friction ([katex]\mu_s[/katex]) is usually greater than kinetic friction ([katex]\mu_k[/katex]) as it resists the start of motion. |
| [katex]k[/katex] | Spring constant, in [katex]\text{N/m}[/katex] |
| [katex] M_E = 5.972 \times 10^{24} , \text{kg} [/katex] | Mass of the Earth |
| [katex] M_M = 7.348 \times 10^{22} , \text{kg} [/katex] | Mass of the Moon |
| [katex] M_M = 1.989 \times 10^{30} , \text{kg} [/katex] | Mass of the Sun |
| Variable | SI Unit |
|---|---|
| [katex]s[/katex] (Displacement) | [katex]\text{meters (m)}[/katex] |
| [katex]v[/katex] (Velocity) | [katex]\text{meters per second (m/s)}[/katex] |
| [katex]a[/katex] (Acceleration) | [katex]\text{meters per second squared (m/s}^2\text{)}[/katex] |
| [katex]t[/katex] (Time) | [katex]\text{seconds (s)}[/katex] |
| [katex]m[/katex] (Mass) | [katex]\text{kilograms (kg)}[/katex] |
| Variable | Derived SI Unit |
|---|---|
| [katex]F[/katex] (Force) | [katex]\text{newtons (N)}[/katex] |
| [katex]E[/katex], [katex]PE[/katex], [katex]KE[/katex] (Energy, Potential Energy, Kinetic Energy) | [katex]\text{joules (J)}[/katex] |
| [katex]P[/katex] (Power) | [katex]\text{watts (W)}[/katex] |
| [katex]p[/katex] (Momentum) | [katex]\text{kilogram meters per second (kgm/s)}[/katex] |
| [katex]\omega[/katex] (Angular Velocity) | [katex]\text{radians per second (rad/s)}[/katex] |
| [katex]\tau[/katex] (Torque) | [katex]\text{newton meters (Nm)}[/katex] |
| [katex]I[/katex] (Moment of Inertia) | [katex]\text{kilogram meter squared (kgm}^2\text{)}[/katex] |
| [katex]f[/katex] (Frequency) | [katex]\text{hertz (Hz)}[/katex] |
Metric Prefixes
Example of using unit analysis: Convert 5 kilometers to millimeters.
Start with the given measurement: [katex]\text{5 km}[/katex]
Use the conversion factors for kilometers to meters and meters to millimeters: [katex]\text{5 km} \times \frac{10^3 \, \text{m}}{1 \, \text{km}} \times \frac{10^3 \, \text{mm}}{1 \, \text{m}}[/katex]
Perform the multiplication: [katex]\text{5 km} \times \frac{10^3 \, \text{m}}{1 \, \text{km}} \times \frac{10^3 \, \text{mm}}{1 \, \text{m}} = 5 \times 10^3 \times 10^3 \, \text{mm}[/katex]
Simplify to get the final answer: [katex]\boxed{5 \times 10^6 \, \text{mm}}[/katex]
Prefix | Symbol | Power of Ten | Equivalent |
|---|---|---|---|
Pico- | p | [katex]10^{-12}[/katex] | |
Nano- | n | [katex]10^{-9}[/katex] | |
Micro- | µ | [katex]10^{-6}[/katex] | |
Milli- | m | [katex]10^{-3}[/katex] | |
Centi- | c | [katex]10^{-2}[/katex] | |
Deci- | d | [katex]10^{-1}[/katex] | |
(Base unit) | – | [katex]10^{0}[/katex] | |
Deca- or Deka- | da | [katex]10^{1}[/katex] | |
Hecto- | h | [katex]10^{2}[/katex] | |
Kilo- | k | [katex]10^{3}[/katex] | |
Mega- | M | [katex]10^{6}[/katex] | |
Giga- | G | [katex]10^{9}[/katex] | |
Tera- | T | [katex]10^{12}[/katex] |
