| Step | Derivation/Formula | Reasoning |
|---|---|---|
| 1 | \[0 \le t \le 5 :\; v(t)=10\] | For the first \(5\,\text{s}\), the car travels at a constant \(10\,\text{m/s}\) forward, so velocity is a horizontal line. |
| 2 | \[a_{1}= \frac{0-10}{2}=-5\,\text{m/s}^2\] | The driver brakes from \(10\,\text{m/s}\) to \(0\) in \(2\,\text{s}\); acceleration (slope) is \(-5\,\text{m/s}^2\). |
| 3 | \[5 < t \le 7 :\; v(t)=10-5(t-5)\] | Using \(v=v_i + a\Delta t\) with \(v_i=10\) and \(a=-5\) during braking, this linear segment ends at \(v=0\) when \(t=7\,\text{s}\). |
| 4 | \[a_{2}= \frac{-8-0}{3}=-\frac{8}{3}\,\text{m/s}^2\] | Immediately after stopping, the car accelerates backward to \(-8\,\text{m/s}\) over \(3\,\text{s}\); slope is \(-\tfrac{8}{3}\,\text{m/s}^2\). |
| 5 | \[7 < t \le 10 :\; v(t)=-\frac{8}{3}(t-7)\] | Starting from \(v_i=0\) at \(t=7\,\text{s}\) with acceleration \(-\tfrac{8}{3}\,\text{m/s}^2\), velocity becomes \(-8\,\text{m/s}\) at \(t=10\,\text{s}\). |
| 6 | \[v(t)=\begin{cases}10 & 0\le t\le5 \\ 10-5(t-5) & 5< t\le7 \\ -\tfrac{8}{3}(t-7) & 7< t\le10\end{cases}\] | Combine the constant, decreasing, and negative linear segments to sketch the complete \(v\)–\(t\) graph. |
A Major Upgrade To Phy Is Coming Soon — Stay Tuned
We'll help clarify entire units in one hour or less — guaranteed.
A self paced course with videos, problems sets, and everything you need to get a 5. Trusted by over 15k students and over 200 schools.
A car increases its forward velocity uniformly from \(40 ~ \text{m/s}\) to \(80 ~ \text{m/s}\) while traveling a distance of \(200 ~ \text{m}\). What is its acceleration during this time?
Given the graph of velocity versus time for a duck flying due south for the winter, at what labeled point did the duck stop its forward motion?
The displacement \( x \) of an object moving in one dimension is shown above as a function of time \( t \). The acceleration of this object must be
A skateboarder, with an initial speed of \( 20.0 \, \text{m/s} \), rolls to the end of friction-free incline of length \( 25 \, \text{m} \). At what angle is the incline oriented above the horizontal?
A rescue plane wants to drop supplies to isolated mountain climbers on a rocky ridge that is \( 235 \) \( \text{m} \) below. The plane is traveling horizontally with a speed of \( 250 \) \( \text{km/h} \). How far in advance of the recipients (horizontal distance) must the goods be dropped?
Why is the stopping distance of a truck much shorter than for a train going the same speed? Hint: try deriving a formula or stopping distance.
Which of the following graphs represent an object at rest?
\[v(t)=\begin{cases}10 & 0\le t\le5 \\ 10-5(t-5) & 5< t\le7 \\ -\tfrac{8}{3}(t-7) & 7< t\le10\end{cases}\]

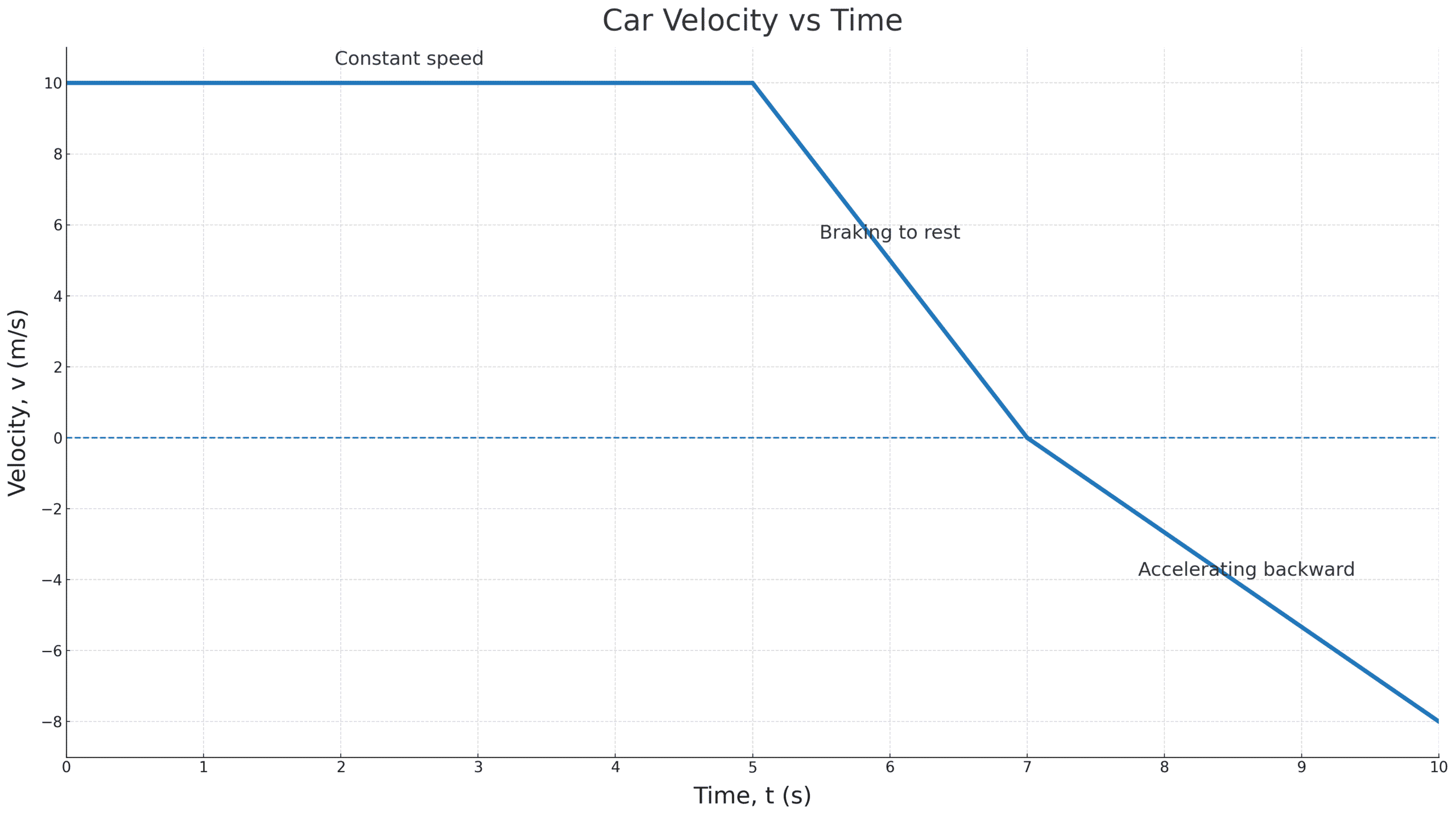

You can also view the drawn out graph here.
