| Step | Derivation/Formula | Reasoning |
|---|---|---|
| 1 | \[v = a t\] | The coaster starts from rest and its speed increases steadily (constant acceleration \(a\)) for the first \(6\;\text{s}\). |
| 2 | \[v_x = a \times 6\] | At \(t = 6\;\text{s}\) the speed has reached some value \(v_x\), given by the product of the acceleration and the time interval. |
| 3 | \[v = v_x\] | For the next \(4\;\text{s}\) (from \(t = 6\;\text{s}\) to \(t = 10\;\text{s}\)) the coaster travels at a constant speed, so the velocity–time graph is a horizontal line. |
| 4 | \[v = v_x + a_b (t-10)\] | When the brakes are applied (\(t = 10\;\text{s}\)) the coaster undergoes a constant negative acceleration \(a_b\) for \(3\;\text{s}\). |
| 5 | \[0 = v_x + a_b (13-10)\;\Rightarrow\;a_b = -\dfrac{v_x}{3}\] | Setting the final speed to zero at \(t = 13\;\text{s}\) gives the braking acceleration. |

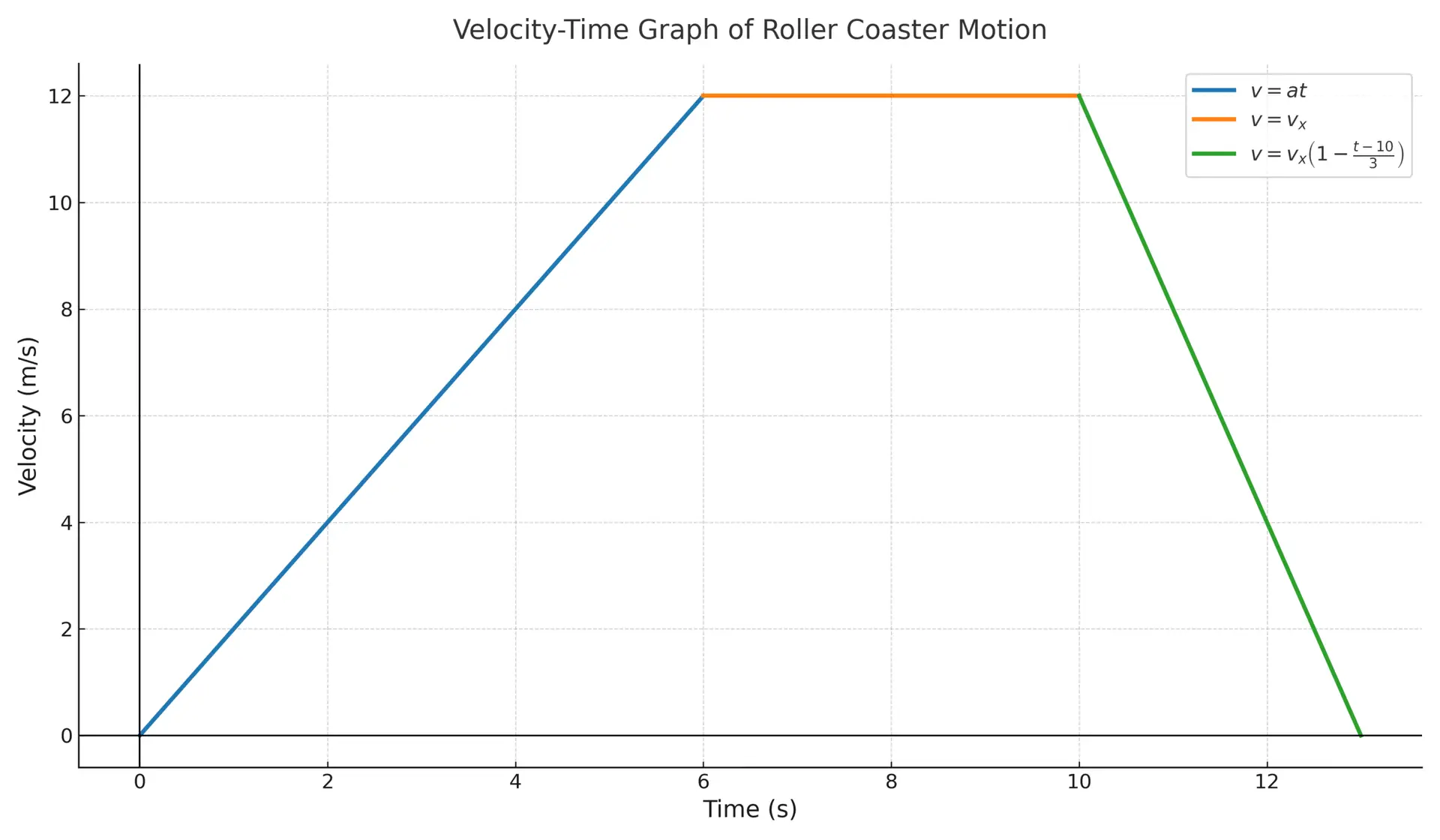

| 6 | \[v(t)=\left\{\begin{array}{ll} a\,t & 0 \le t \le 6 \\ 6a & 6 < t \le 10 \\ 2a(13 – t) & 10 < t \le 13 \end{array}\right.\quad (a>0)\] | Piecewise form summarises the entire velocity–time graph: linear rise, flat section, and linear fall back to zero. |
A Major Upgrade To Phy Is Coming Soon — Stay Tuned
We'll help clarify entire units in one hour or less — guaranteed.
A self paced course with videos, problems sets, and everything you need to get a 5. Trusted by over 15k students and over 200 schools.
A projectile is launched at \( 25 \) \( \text{m/s} \) at an angle of \( 45^\circ \). It lands on a slope \( 5 \) \( \text{m} \) below the launch height. On landing, it rebounds vertically with \( 80\% \) of its speed and falls straight down from there. Find the total time from launch to final impact at the base of the slope.

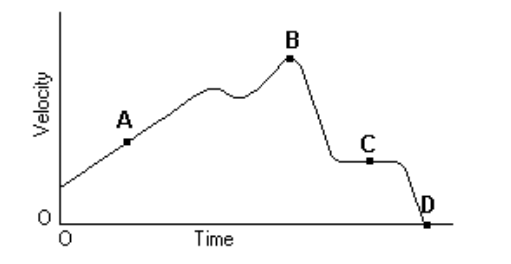

The motion of a particle is described in the velocity vs. time graph shown above. Over the nine-second interval shown, we can say that the speed of the particle…
A girl, standing still, tosses a ball vertically upwards. One second later, she tosses up another ball at the same velocity. The balls collide \( 0.5 \) \( \text{s} \) after the second ball is tossed. With what velocity were they tossed? The acceleration due to gravity is \( 9.8 \) \( \text{m/s}^2 \).
An airplane accelerates down a runway at \( 10 \, \text{m/s}^2 \). It reaches a final velocity of \( 200 \, \text{m/s} \) until it finally lifts off the ground. Determine the distance traveled before takeoff.
The graph below is a plot of position versus time. For which labeled segments is the velocity positive and the acceleration negative?
A 1100 kg car accelerates from 32 m/s to 8.0 m/s in 4.0 sec. What amount of force was needed to slow it down?
A large beach ball is dropped from the ceiling of a school gymnasium to the floor about 10 meters below. Which of the following graphs would best represent its velocity as a function of time? (do not neglect air resistance)
An ice sled powered by a rocket engine starts from rest on a large frozen lake and accelerates at \( +13.0 \, \text{m/s}^2 \). At \( t_1 \), the rocket engine is shut down and the sled moves with constant velocity \( v \) until \( t_2 \). The total distance traveled by the sled is \( 5.30 \times 10^3 \, \text{m} \) and the total time is \( 90.0 \, \text{s} \).
Ball A is dropped from the top of a cliff. At the same time, Ball B is thrown straight upward from the ground at \( 30 \) \( \text{m/s} \). The two balls pass each other after \( 2.0 \) \( \text{s} \).
\[v(t)=\left\{\begin{array}{ll} a\,t & 0 \le t \le 6 \\ 6a & 6 < t \le 10 \\ 2a(13 – t) & 10 < t \le 13 \end{array}\right.\quad (a>0)\]
